Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IO5, IO6)
>>
Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data

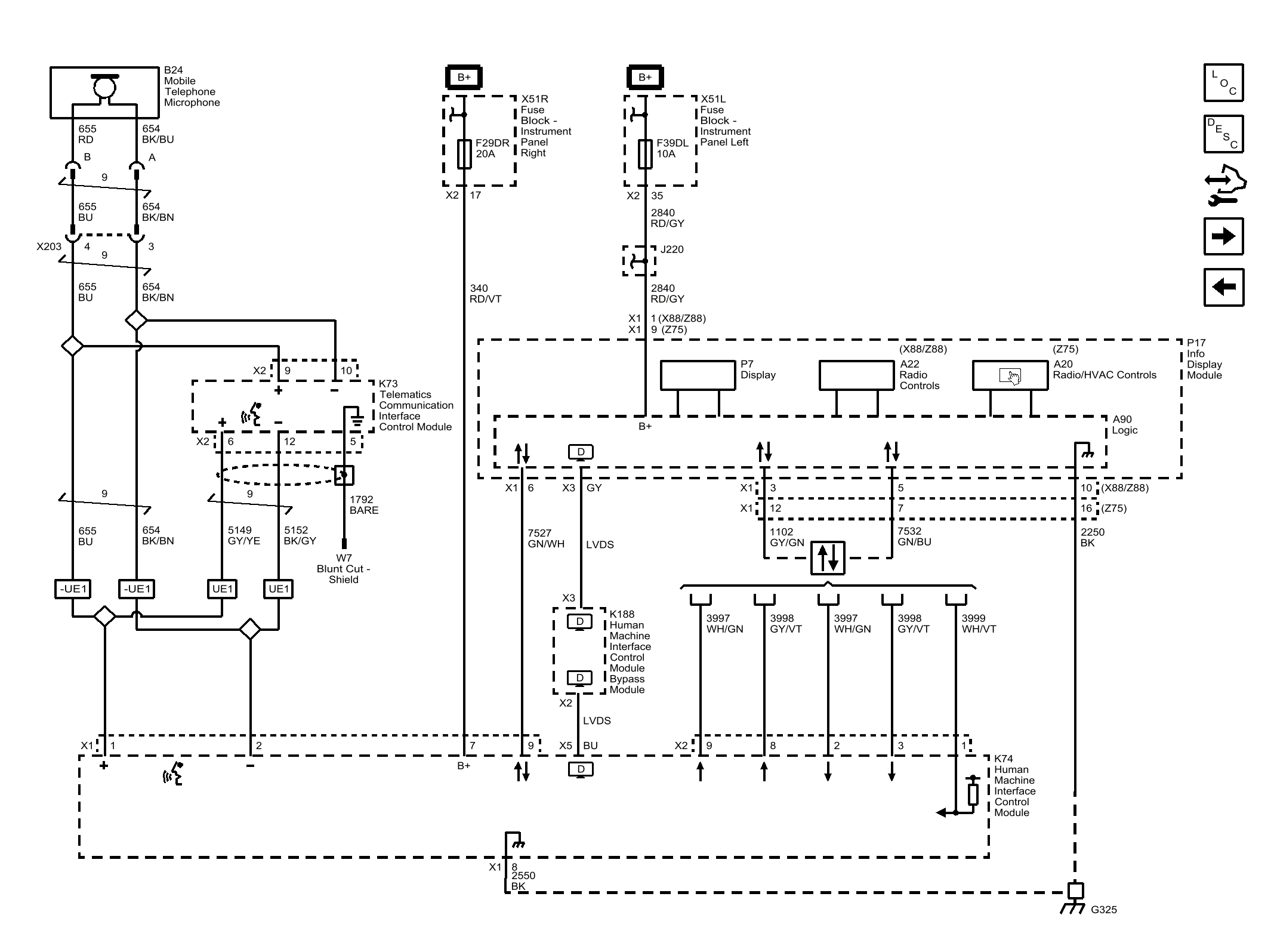

Fig 1: Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data
