Left Front Corner of Vehicle Components

Left Front Corner of Vehicle Components

Items
1. G19 Rear Window Washer Pump G19 Rear Window Washer Pump
2. G24 Windshield Washer Pump G24 Windshield Washer Pump
3. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch

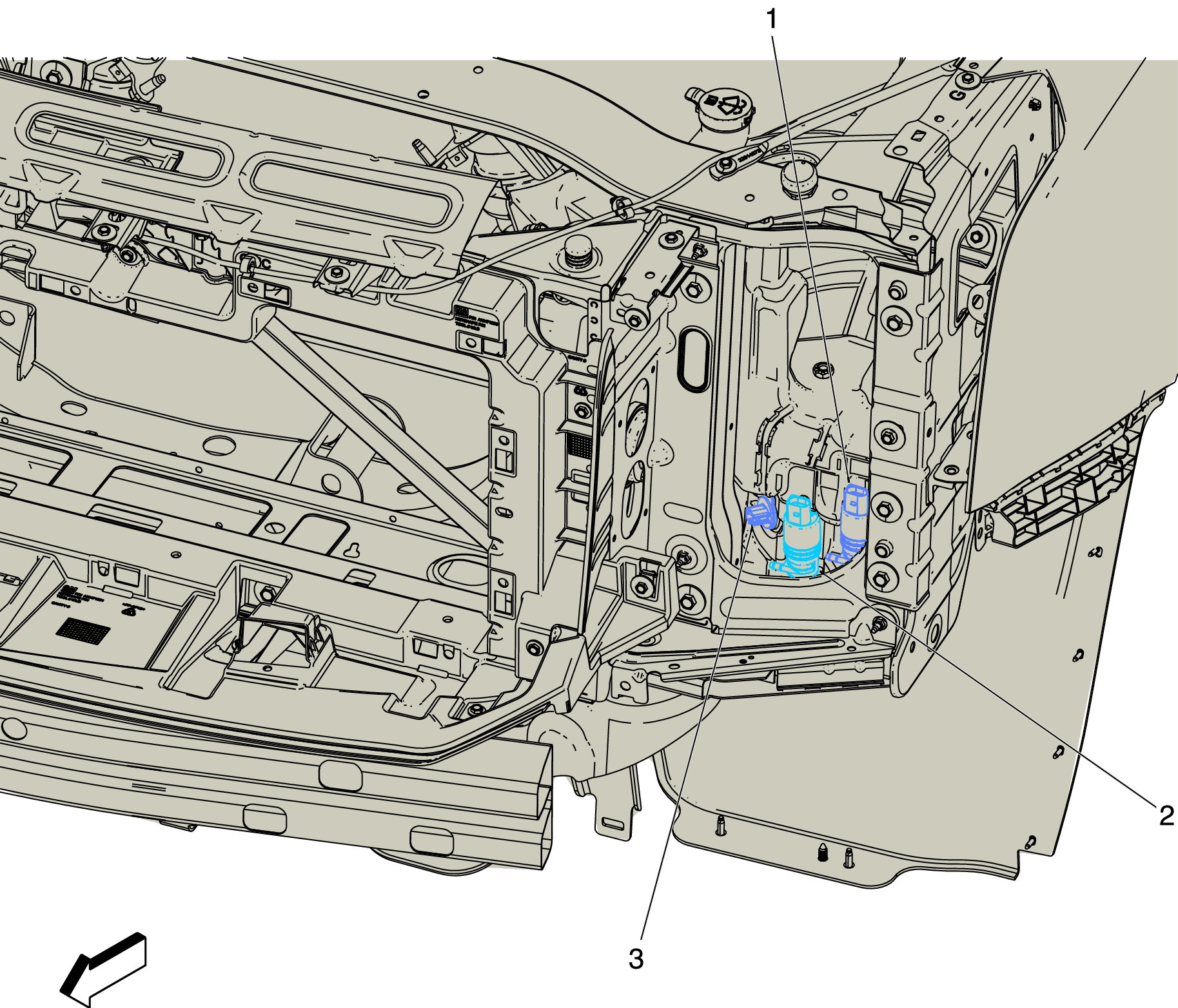

Fig 1: Left Front Corner of Vehicle Components
GM3639538Courtesy of GENERAL MOTORS COMPANY
