Behind Front Fascia Components (X88/Z88)

Behind Front Fascia Components (X88/Z88)

Items
1. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
2. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
3. B55 Hood Ajar Switch B55 Engine Hood Switch
4. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
5. K14 Distance Sensing Cruise Control Module (K59) K14 Distance Sensing Cruise Control Module

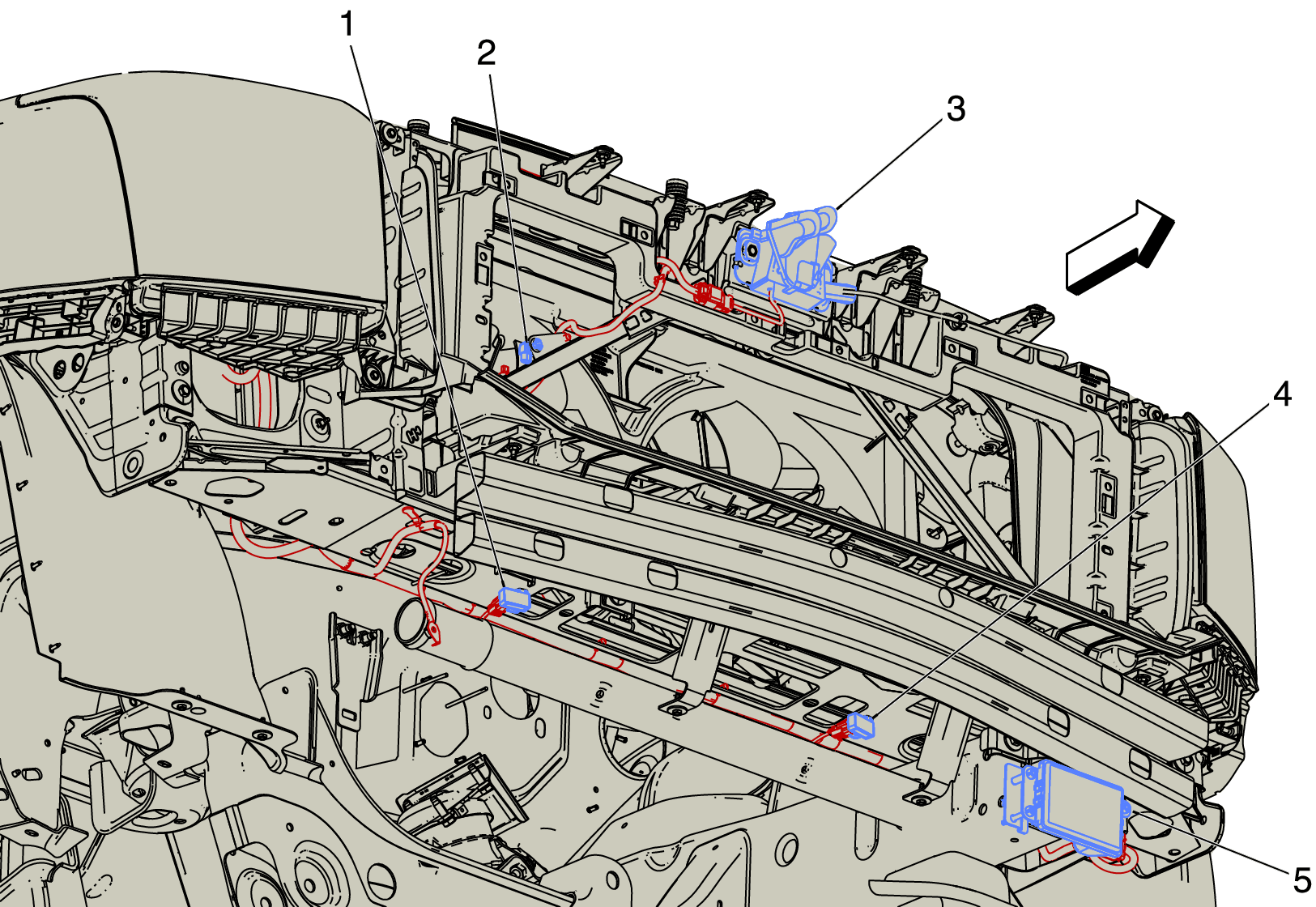

Fig 1: Behind Front Fascia Components (X88/Z88)
GM3821392Courtesy of GENERAL MOTORS COMPANY
