Cooling Fans

Cooling Fans

Items
1. P12 Horn P12 Horn
2. G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
3. G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right

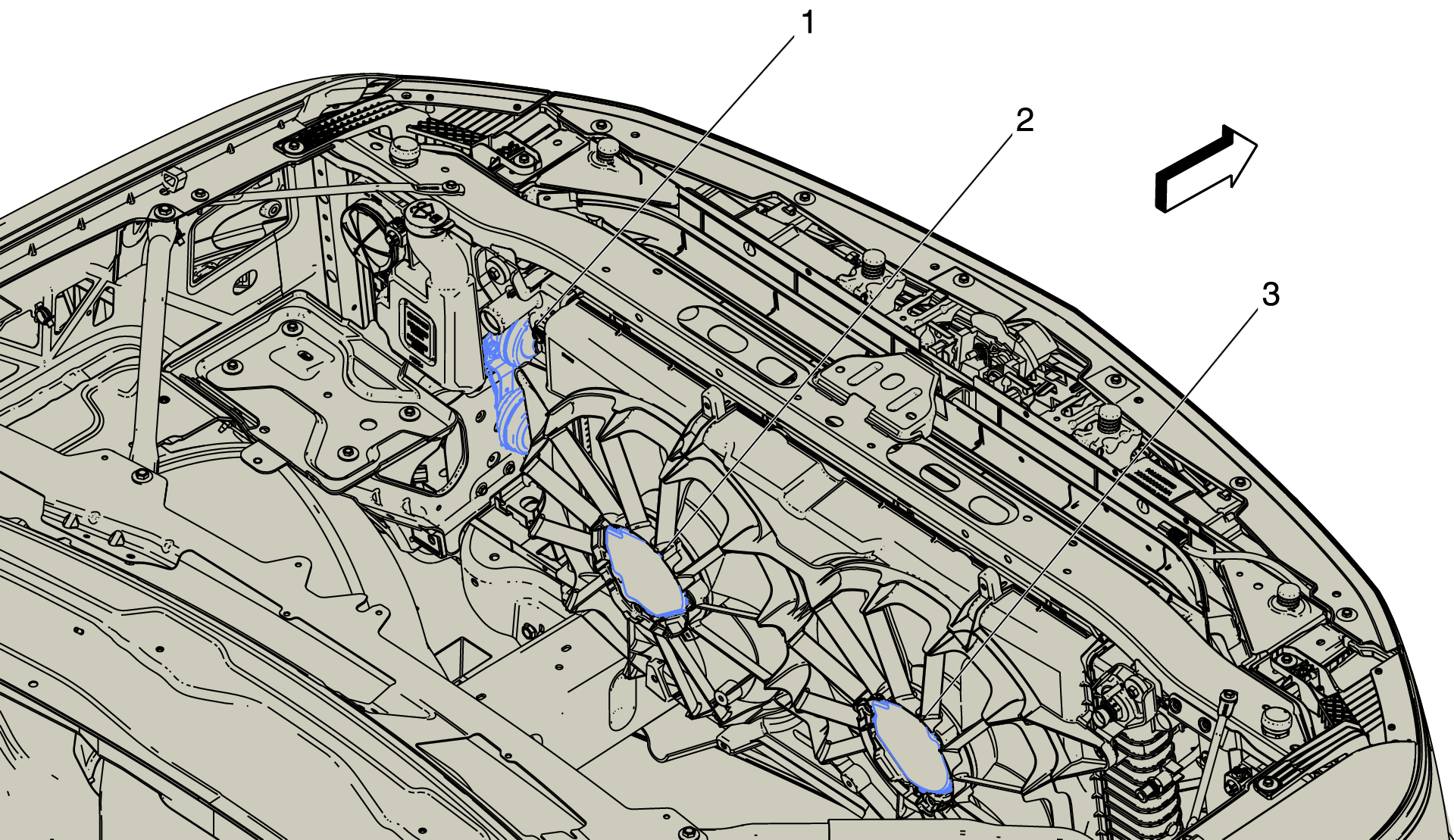

Fig 1: Cooling Fans
GM3639540Courtesy of GENERAL MOTORS COMPANY
