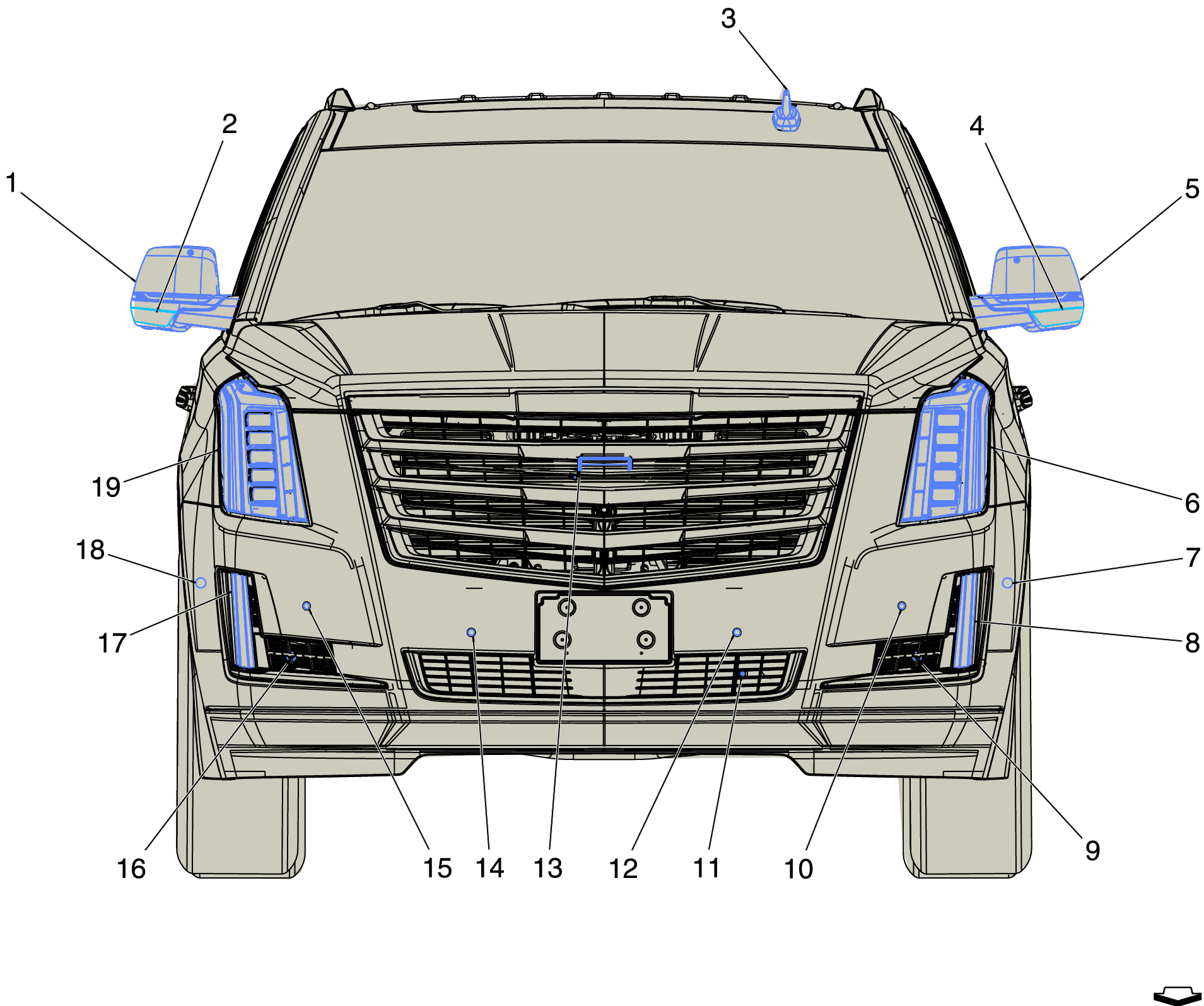

Front of Vehicle Components (Z75)
Front of Vehicle Components (Z75)
| Items |
|---|
| 1. A9B Outside Rearview Mirror - Passenger |
| 2. E8YP Outside Rearview Mirror Courtesy Lamp - Passenger (DL3) |
| 3. T4G Cellular Phone, Navigation, and Digital Radio Antenna |
| 4. E8YD Outside Rearview Mirror Courtesy Lamp - Driver (DL3) |
| 5. A9A Outside Rearview Mirror - Driver |
| 6. E13LA Headlamp Assembly - Left |
| 7. B306K Parking Assist Sensor - Side Left Front (UKG) B306K Parking Assist Sensor - Side Left Front (UKG) |
| 8. E4AL Park/Daytime Running Lamp - Left Lower (Z75) |
| 9. E4LF Turn Signal Lamp - Left Front |
| 10. B306A Parking Assist Sensor - Front Left Outer (UD5) B306A Parking Assist Sensor - Front Left Outer |
| 11. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 12. B306B Parking Assist Sensor - Front Left Middle (UD5) B306B Parking Assist Sensor - Front Left Middle |
| 13. B233B Radar Sensor Module - Long Range B233B Radar Sensor Module - Long Range |
| 14. B306C Parking Assist Sensor - Front Right Middle (UD5) B306C Parking Assist Sensor - Front Right Middle |
| 15. B306D Parking Assist Sensor - Front Right Outer (UD5) B306D Parking Assist Sensor - Front Right Outer |
| 16. E4RF Turn Signal Lamp - Right Front |
| 17. E4AM Park/Daytime Running Lamp - Right Lower (Z75) |
| 18. B306L Parking Assist Sensor - Side Right Front (UKG) B306L Parking Assist Sensor - Side Right Front (UKG) |
| 19. E13RA Headlamp Assembly - Right |
