Headliner Components

Headliner Components

Items
1. P22A Video Display - 2nd Row (U42) P22A Video Display - 2nd Row X1 (U42+DNU)P22A Video Display - 2nd Row X1 (U42-DNU)P22A Video Display - 2nd Row X2 (-ULT)P22A Video Display - 2nd Row X2 (ULT)
2. E37H Dome/Reading Lamps - Left Roof Rail (U42) E37H Dome/Reading Lamps - Left Roof Rail
3. E37J Dome/Reading Lamps - Right Roof Rail (U42) E37J Dome/Reading Lamps - Right Roof Rail
4. P22B Video Display - 3rd Row (DNU) P22B Video Display - 3rd Row X1 (DNU)P22B Video Display - 3rd Row
5. B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC) B77RF Radio Volume Compensator Interior Noise Microphone - Right Front
6. E37C Dome/Reading Lamps - 3rd Row E37C Dome/Reading Lamps - 3rd Row
7. B77R Radio Volume Compensator Interior Noise Microphone - Rear (NKC) B77R Radio Volume Compensator Interior Noise Microphone - Rear
8. E37B Dome/Reading Lamps - 2nd Row E37B Dome/Reading Lamps - 2nd Row
9. A34 HVAC Controls - Auxiliary (AZ3/D07/DCK) A34 HVAC Controls - Auxiliary (AZ3)A34 HVAC Controls - Auxiliary (X88/Z88+D07)A34 HVAC Controls - Auxiliary (X88/Z88+DCK)A34 HVAC Controls - Auxiliary (Z75+D07)A34 HVAC Controls - Auxiliary (Z75+DCK)
10. B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC) B77RF Radio Volume Compensator Interior Noise Microphone - Right Front
11. B24 Cellular Phone Microphone B24 Mobile Telephone Microphone
12. B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC) B77LF Radio Volume Compensator Interior Noise Microphone - Left Front

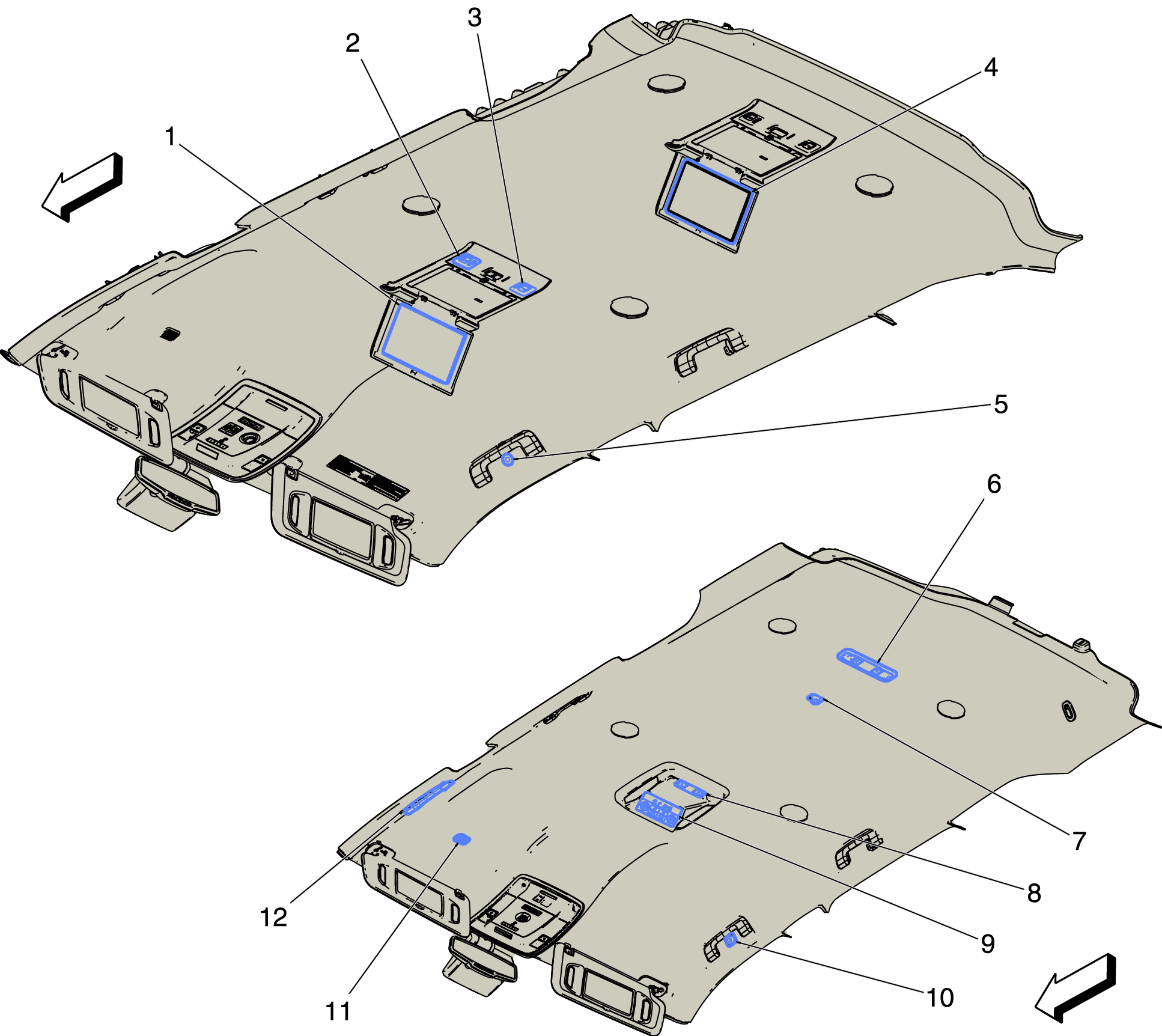

Fig 1: Headliner Components
GM3639549Courtesy of GENERAL MOTORS COMPANY
