Overhead Console Components

Items
1. E31L Sunshade Mirror Lamp - Left E31L Sunshade Mirror Lamp - Left
2. E37EL Dome/Reading Lamps - Front Overhead Console Left E37EL Dome/Reading Lamps - Front Overhead Console Left
3. S25 Garage Door Opener (UG1) S25 Garage Door Opener
4. S72 Sunroof Switch (CF5) S72 Sunroof Switch
5. S12 Dome Lamp Switch S12 Dome Lamp Switch
6. S43 Content Theft Deterrent Sensor Disable Switch (UTT) S43 Content Theft Deterrent Sensor Disable Switch
7. S45B Liftgate Control Switch - Interior (TB5 or TC2) S45B Liftgate Control Switch - Interior
8. E31R Sunshade Mirror Lamp - Right E31R Sunshade Mirror Lamp - Right
9. E37ER Dome/Reading Lamps - Front Overhead Console Right E37ER Dome/Reading Lamps - Front Overhead Console Right
10. E38 Flood Lamp - Center Console E38 Flood Lamp - Center Console
11. P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator (-DRZ)P14 Passenger Air Bag Disabled Indicator (DRZ)
12. A10 Inside Rearview Mirror A10 Inside Rearview Mirror X1 A10 Inside Rearview Mirror X2 (DRZ)
13. S51 Telematics Button Assembly (UE1) S51 Telematics Button Assembly (DRZ)
14. B174W Frontview Camera - Windshield (UFL, UHX, or UGN) B174W Frontview Camera - Windshield B174W Frontview Camera - Windshield (UHX)

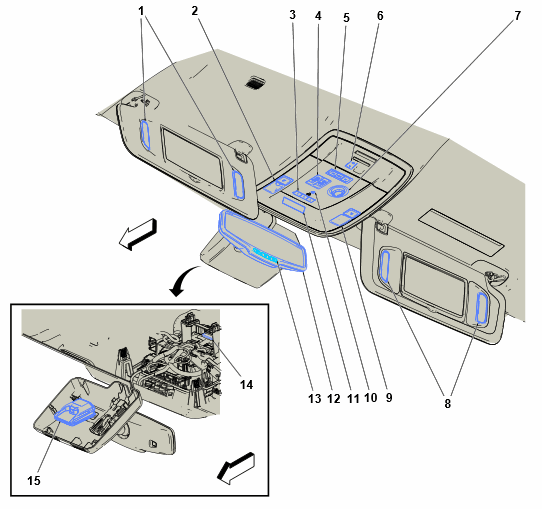

Fig 1: Overhead Console Components

Courtesy of GENERAL MOTORS COMPANY
