Front of Engine Components (L83 or L86)

Front of Engine Components (L83 or L86)

Items
1. Q6 Camshaft Position Actuator Solenoid Valve Q6 Camshaft Position Actuator Solenoid Valve
2. B23 Camshaft Position Sensor B23 Camshaft Position Sensor
3. Q44 Engine Oil Pressure Control Solenoid Valve (L83 or L86) Q44 Engine Oil Pressure Control Solenoid Valve

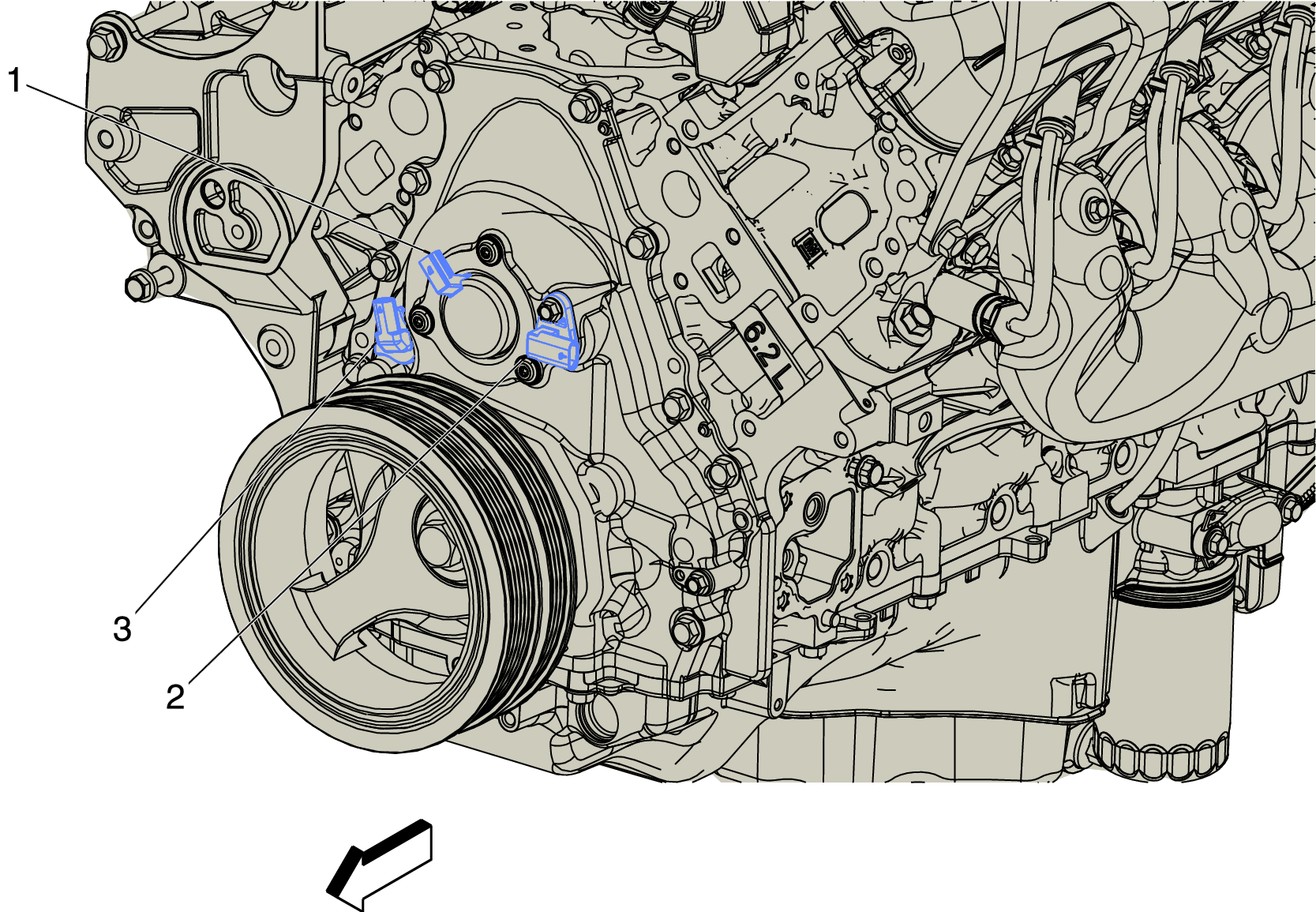

Fig 1: Front of Engine Components (L83 or L86)
GM3819508Courtesy of GENERAL MOTORS COMPANY
