Transfer Case Components (NP0 or NQH)

Transfer Case Components (NP0 or NQH)

Items
1. A16 Transfer Case Motor (NP0 or NQH) A16 Transfer Case Motor
2. B115 Vehicle Speed Sensor (NP0 or NQH) B115 Vehicle Speed Sensor (NPO/NQH)
3. B227 Gear Position Sensor (NP0 or NQH) B227 Gear Position Sensor

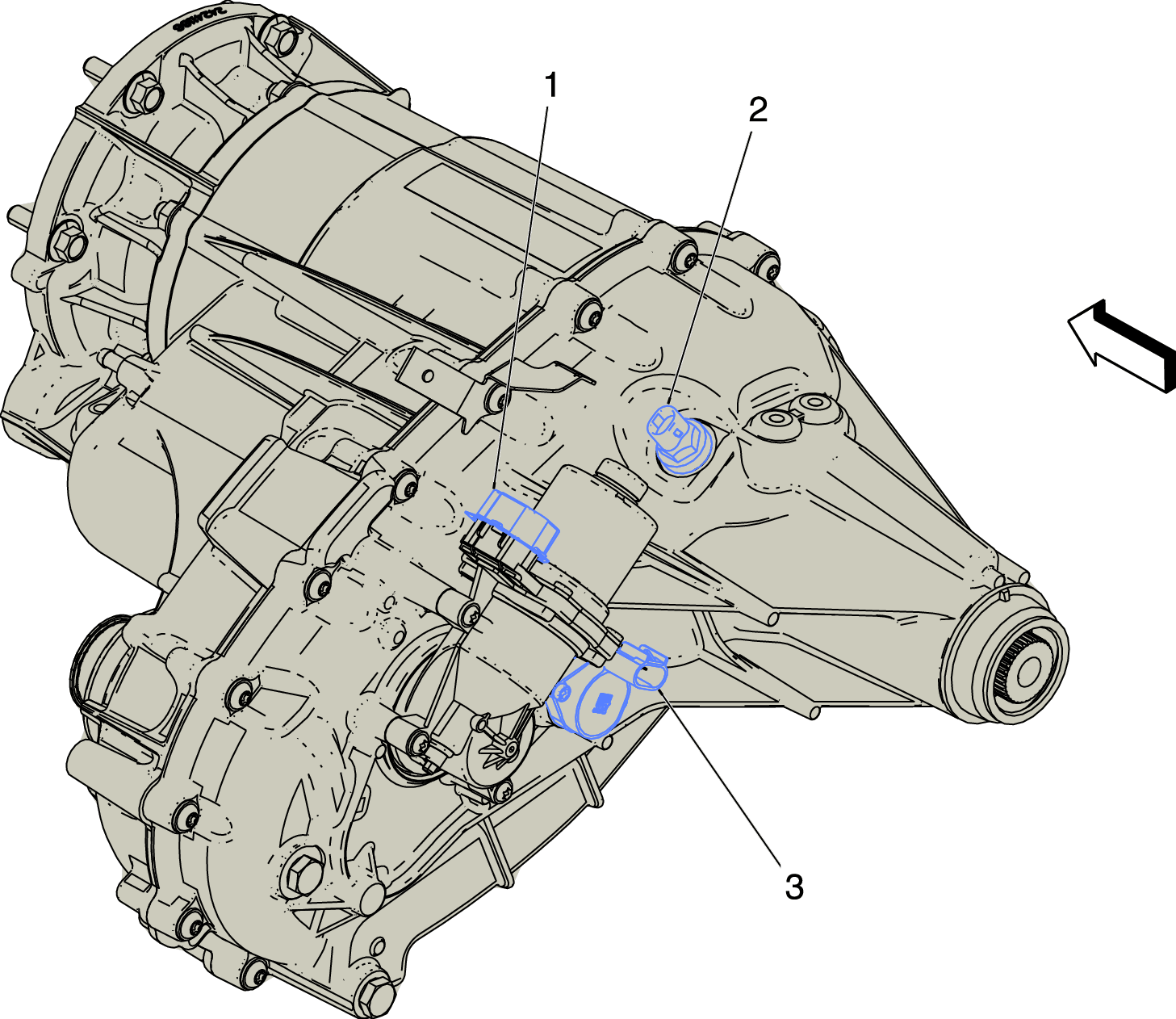

Fig 1: Transfer Case Components (NP0 or NQH)
GM3819550Courtesy of GENERAL MOTORS COMPANY
