Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement (Chevrolet / GMC)

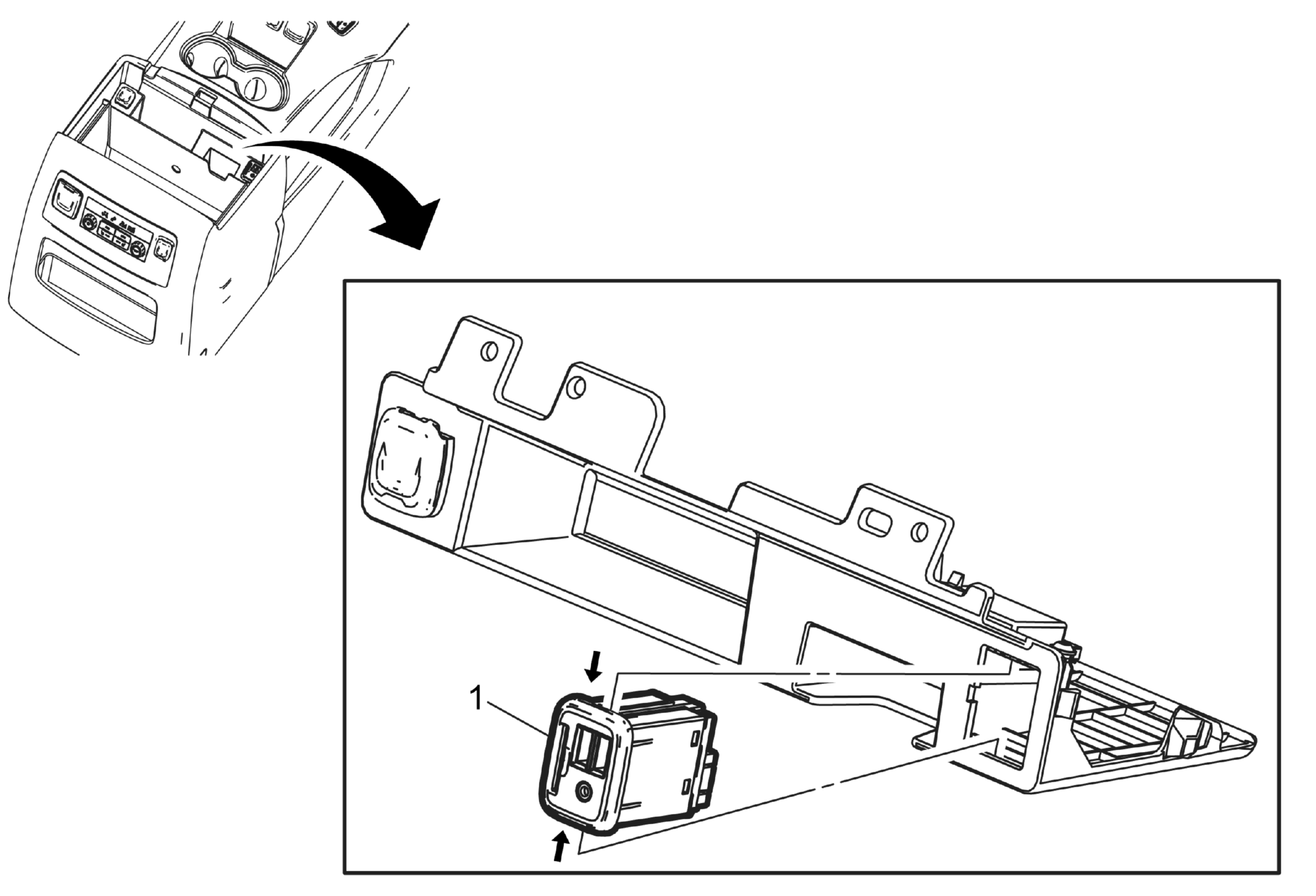

Fig 1: Multimedia Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Chevrolet / GMC) .
1	Audio Player, USB, Auxiliary In, and Memory Card Receptacle Procedure  Depress the tabs on the receptacle to remove.
