Radio Control Assembly Replacement (Cadillac)

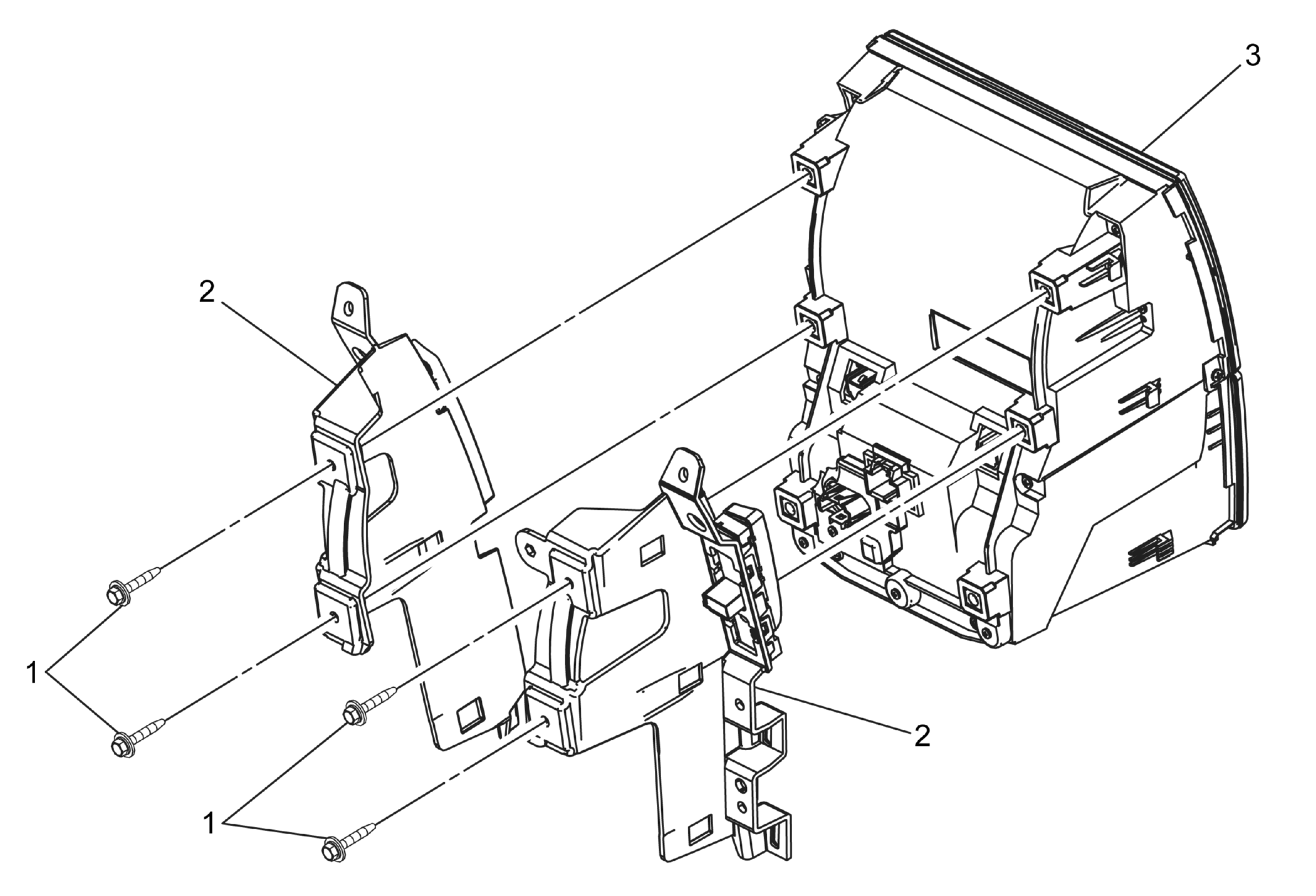

Fig 1: Radio Control Assembly (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim panel bracket. Refer to Instrument Panel Upper Trim Panel Bracket Replacement (Cadillac) .
1	Radio Control Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Bracket (Qty: 2)
3	Radio Control Assembly Procedure Remove the radio control from the bracket assembly. Refer to Control Module References for programming and setup information.
