Radio Control Switch Replacement - Rear

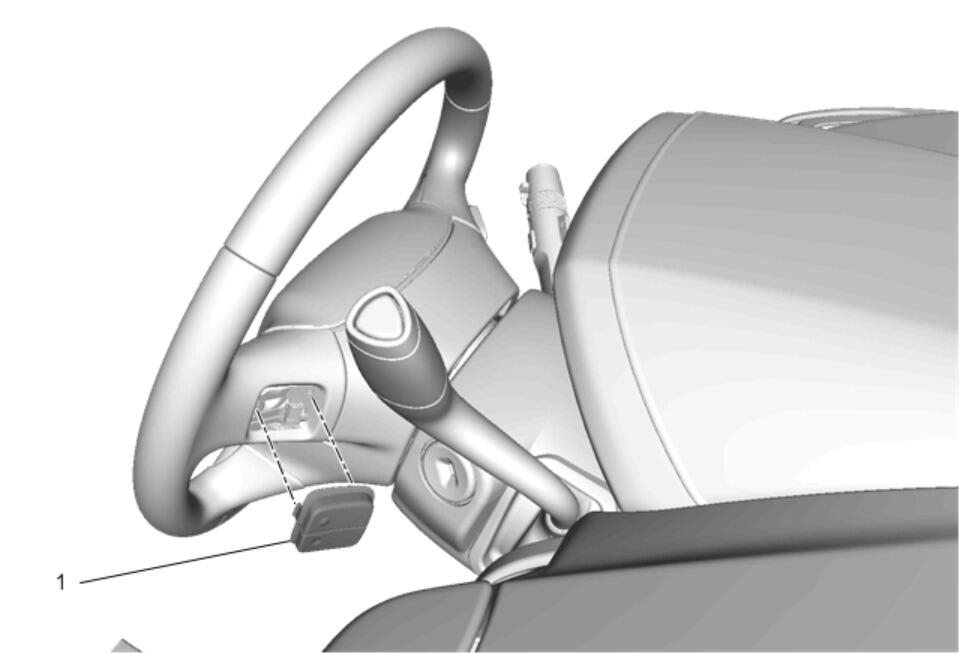

Fig 1: Radio Control Switch - Rear
GM3510822Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Control Switch- Rear

Procedure

  1. Use the appropriate tool to gently release the switch from the rear of the steering wheel.
  2. Disconnect the electrical connector.
