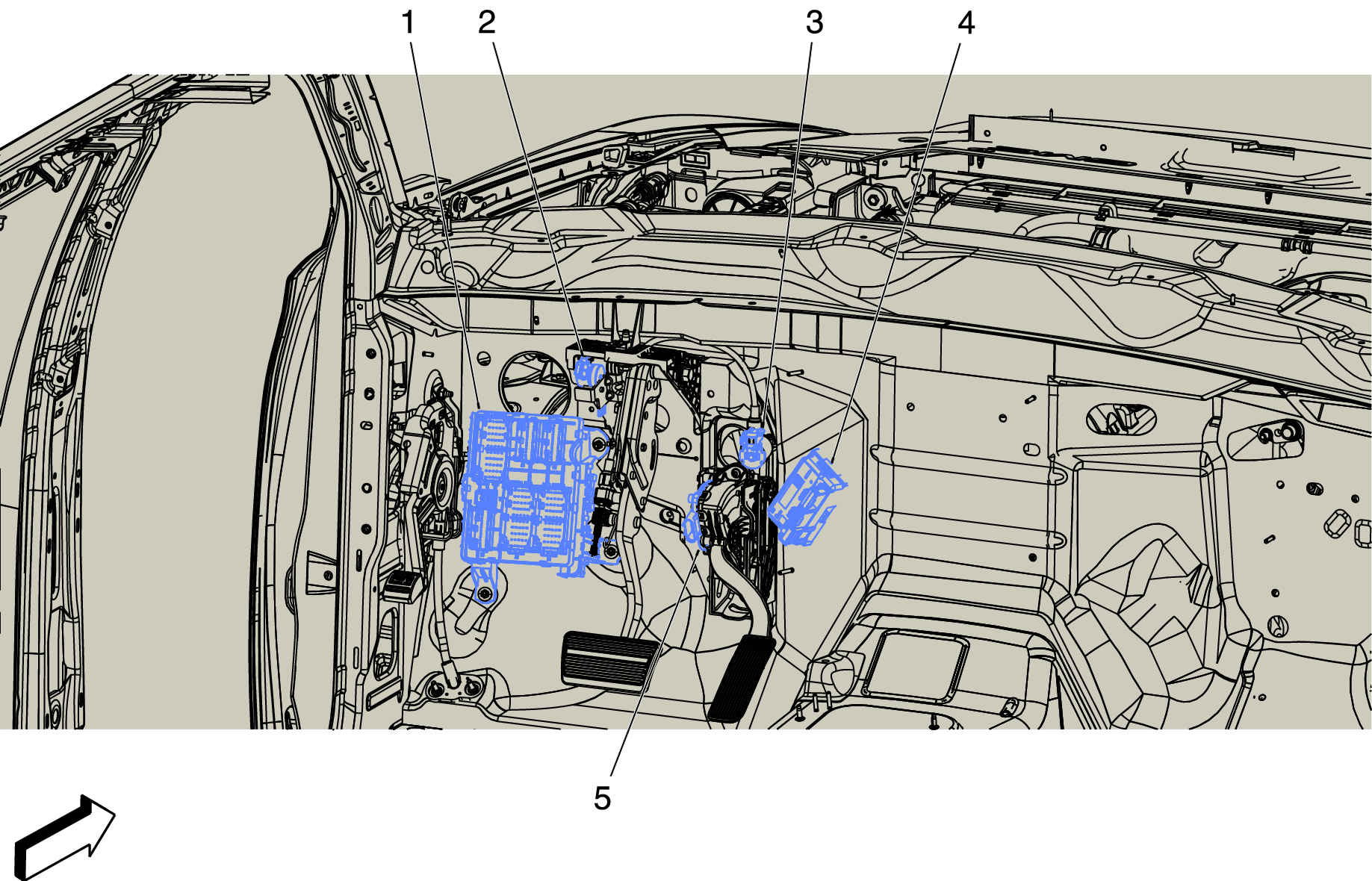

Behind Left Side of Instrument Panel Components (1 of 2)
Behind Left Side of Instrument Panel Components (1 of 2)
| Items |
|---|
| 1. X61A Junction Block - Instrument Panel X61A Junction Block - Instrument Panel X1X61A Junction Block - Instrument Panel X2X61A Junction Block - Instrument Panel X3X61A Junction Block - Instrument Panel X4X61A Junction Block - Instrument Panel X5X61A Junction Block - Instrument Panel X6X61A Junction Block - Instrument Panel X7X61A Junction Block - Instrument Panel X8X61A Junction Block - Instrument Panel X9 |
| 2. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 3. M5 Adjustable Pedal Motor (JF4) M5 Adjustable Pedal Motor |
| 4. K69 Transfer Case Control Module (NP0 or NQH) K69 Transfer Case Control Module X1K69 Transfer Case Control Module X2K69 Transfer Case Control Module X3 |
| 5. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
