Left Side of Engine Components (L83 or L86)

Left Side of Engine Components (L83 or L86)

Items
1. G13 Generator G13 GeneratorG13 Generator X2
2. Q38 Throttle Body Q38 Throttle Body ((L83/L86)+MYC)Q38 Throttle Body (L86+M5U)
3. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor ((L83/L86)+MYC)B74 Manifold Absolute Pressure Sensor (L86+M5U)
4. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve ((L83/L86)+MYC)Q12 Evaporative Emission Purge Solenoid Valve (L86+M5U)
5. B68A Knock Sensor 1 B68A Knock Sensor 1 ((L83/L86)+MYC)B68A Knock Sensor 1 (L86+M5U)
6. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor ((L83/L86)+MYC)B34 Engine Coolant Temperature Sensor (L86+M5U)
7. Q43 Valve Lifter Oil Manifold Assembly (L83 or L86) Q43 Valve Lifter Oil Manifold Assembly
8. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor ((L83/L86)+MYC)B37B Engine Oil Pressure Sensor (L86+M5U)
9. G1 A/C Compressor

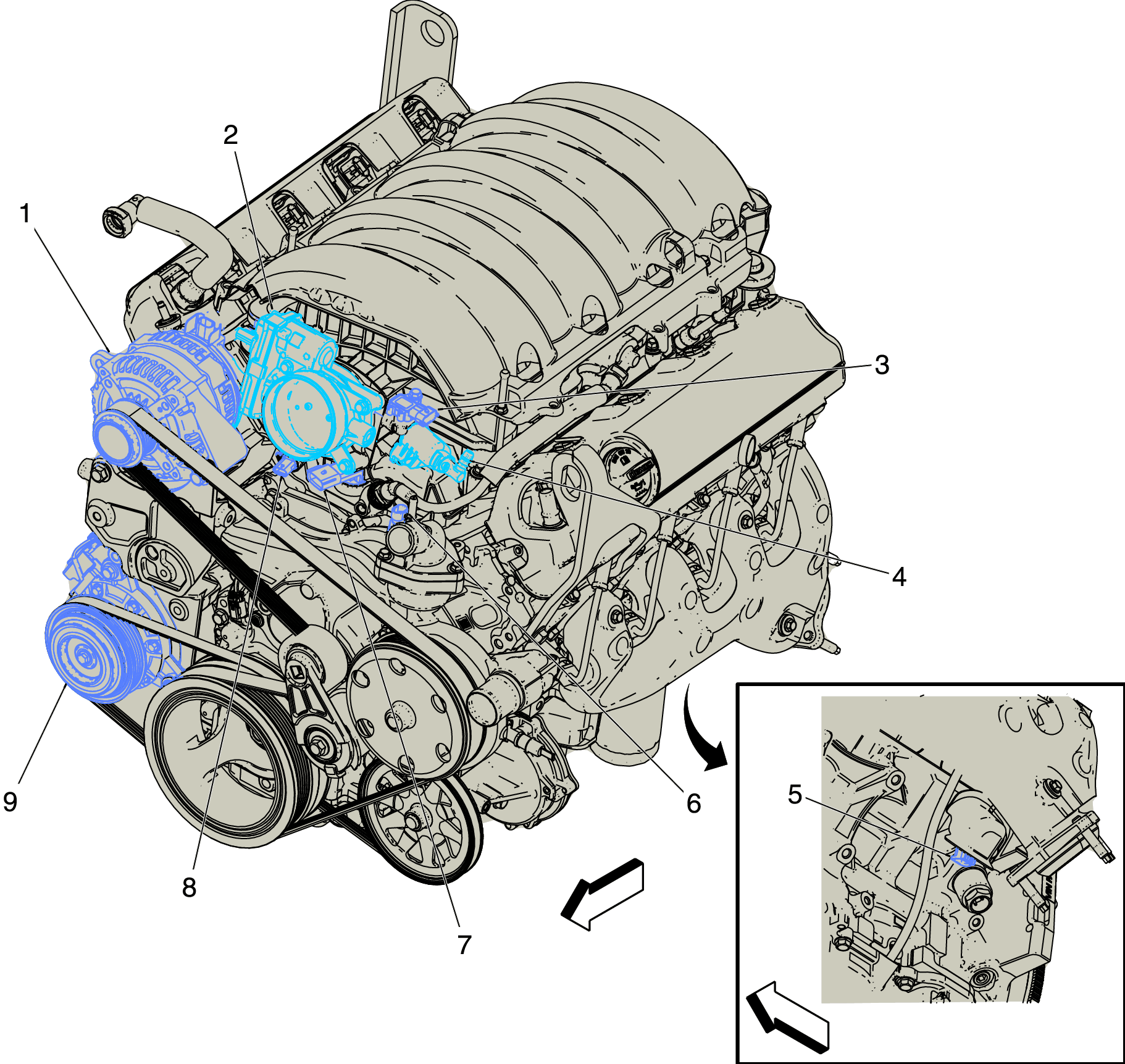

Fig 1: Left Side of Engine Components (L83 or L86)
GM3819399Courtesy of GENERAL MOTORS COMPANY
