Installation Procedure

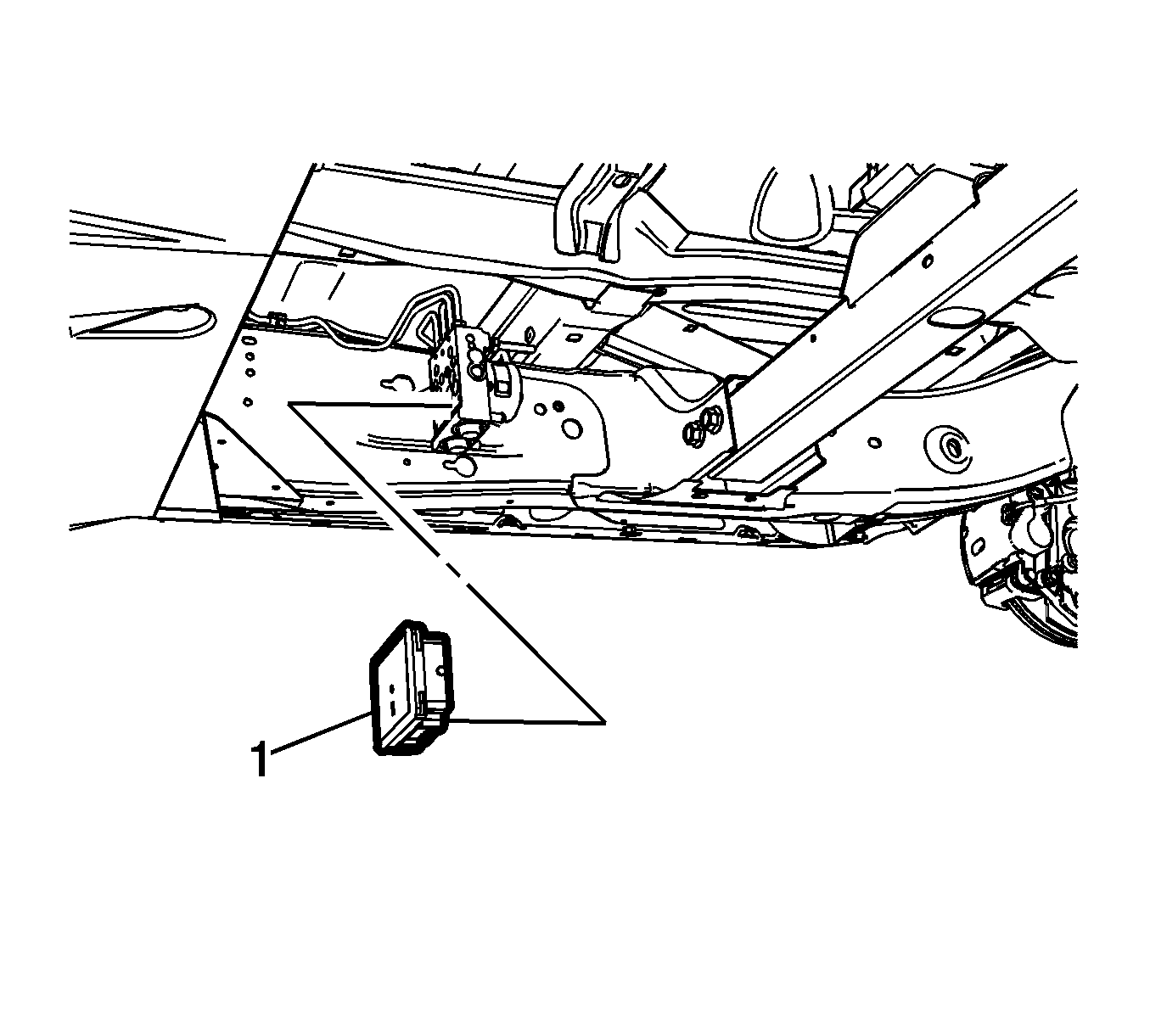

    Fig 1: EBCM And Brake Pressure Modulator Valve (BPMV)
    GM3255766Courtesy of GENERAL MOTORS COMPANY
  1. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.
  2. Inspect the EBCM to BPMV gasket for damage and replace, if necessary.
  3. Install the EBCM (1) to the BPMV.

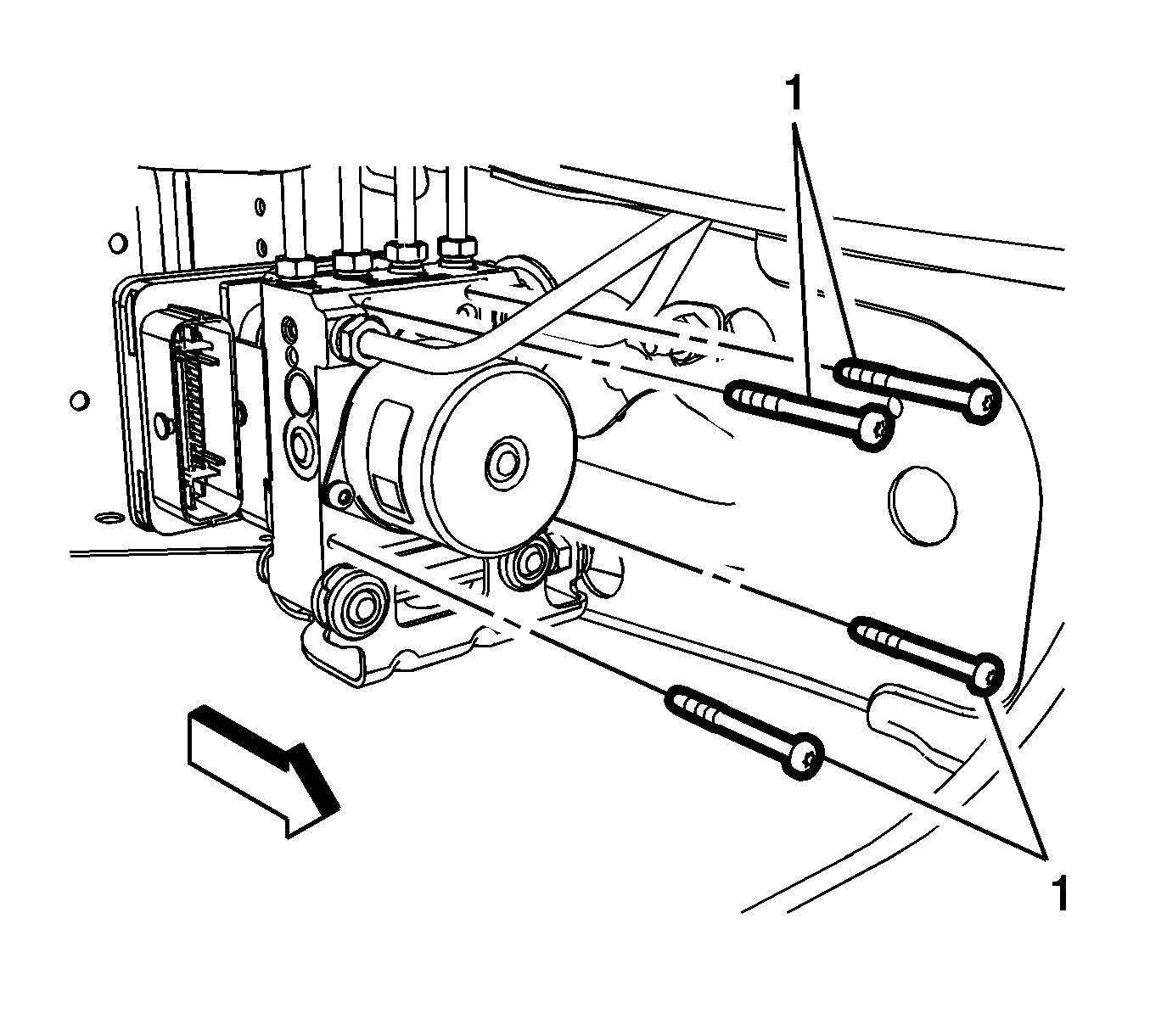

    4. Fig 2: EBCM Bolts
    GM3255759Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the EBCM bolts (1) and tighten in a cross pattern to 3 N.m (27 lb in).
  5. Connect the EBCM electrical connector.
  6. Program the EBCM. Refer to Control Module References .
