Accessory and Liftgate Control Module Replacement

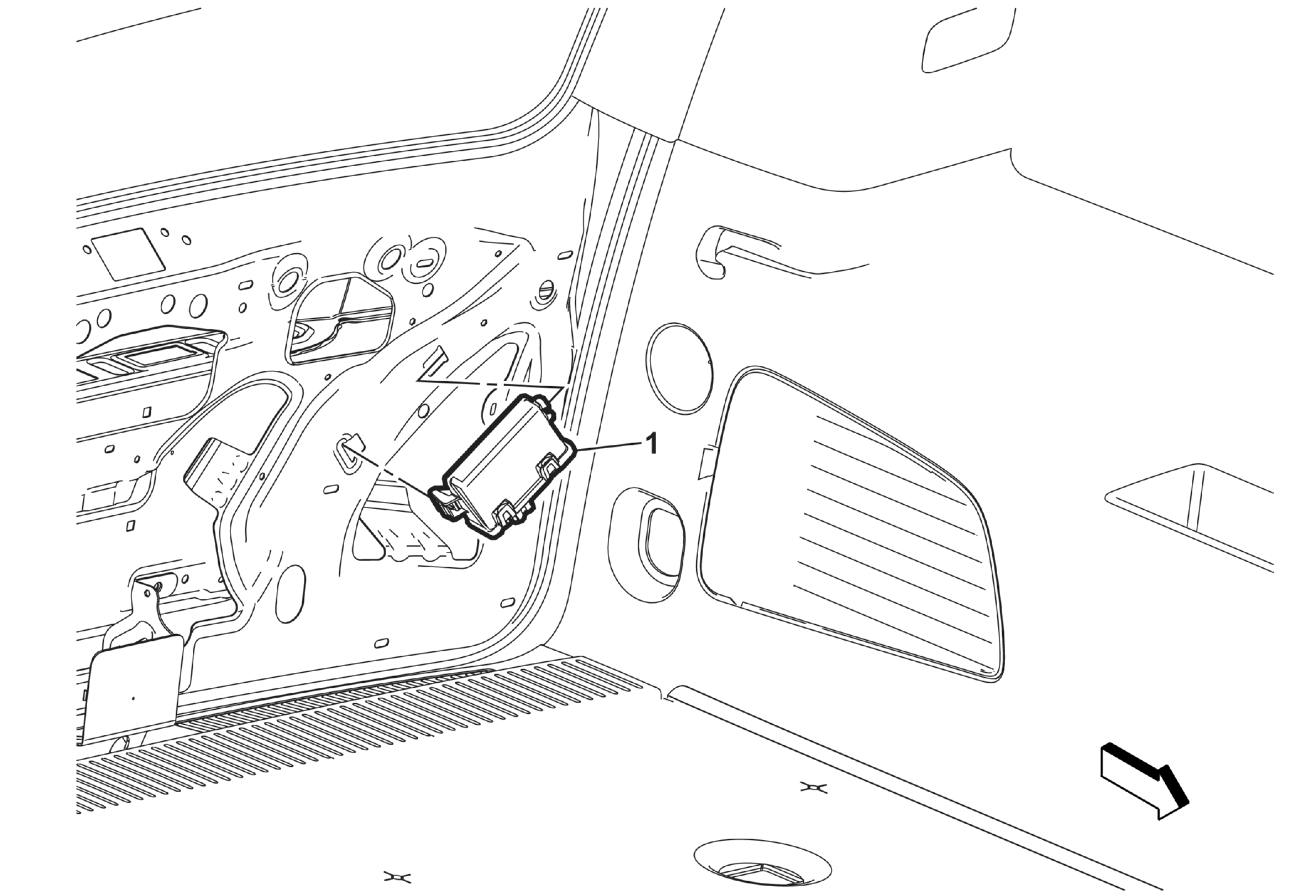

Fig 1: Accessory and Liftgate Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
1	Accessory and Liftgate Control Module Procedure Disconnect the electrical connectors. Push in tabs to release module from the liftgate inner panel. Reprogram the control module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .

Accessory and Liftgate Control Module

Procedure
