Driver or Passenger Seat Adjuster Memory Module Replacement

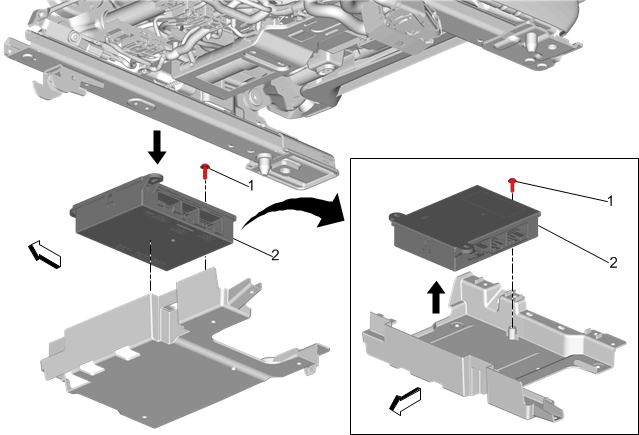

Fig 1: Driver or Passenger Seat Adjuster Memory Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat adjuster memory module bracket. Refer to Front Seat Adjuster Memory Module Bracket Replacement .
1	Driver or Passenger Seat Adjuster Memory Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect electrical connectors. Remove the module from the driver seat bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the front seat adjuster memory module bracket. Refer to Front Seat Adjuster Memory Module Bracket Replacement .

Driver or Passenger Seat Adjuster Memory Module Fastener

CAUTION:

Tighten
2 N.m (18 lb in)

Driver or Passenger Seat Adjuster Memory Module

Procedure
