Vehicle Stability Control System Switch Replacement (Cadillac)

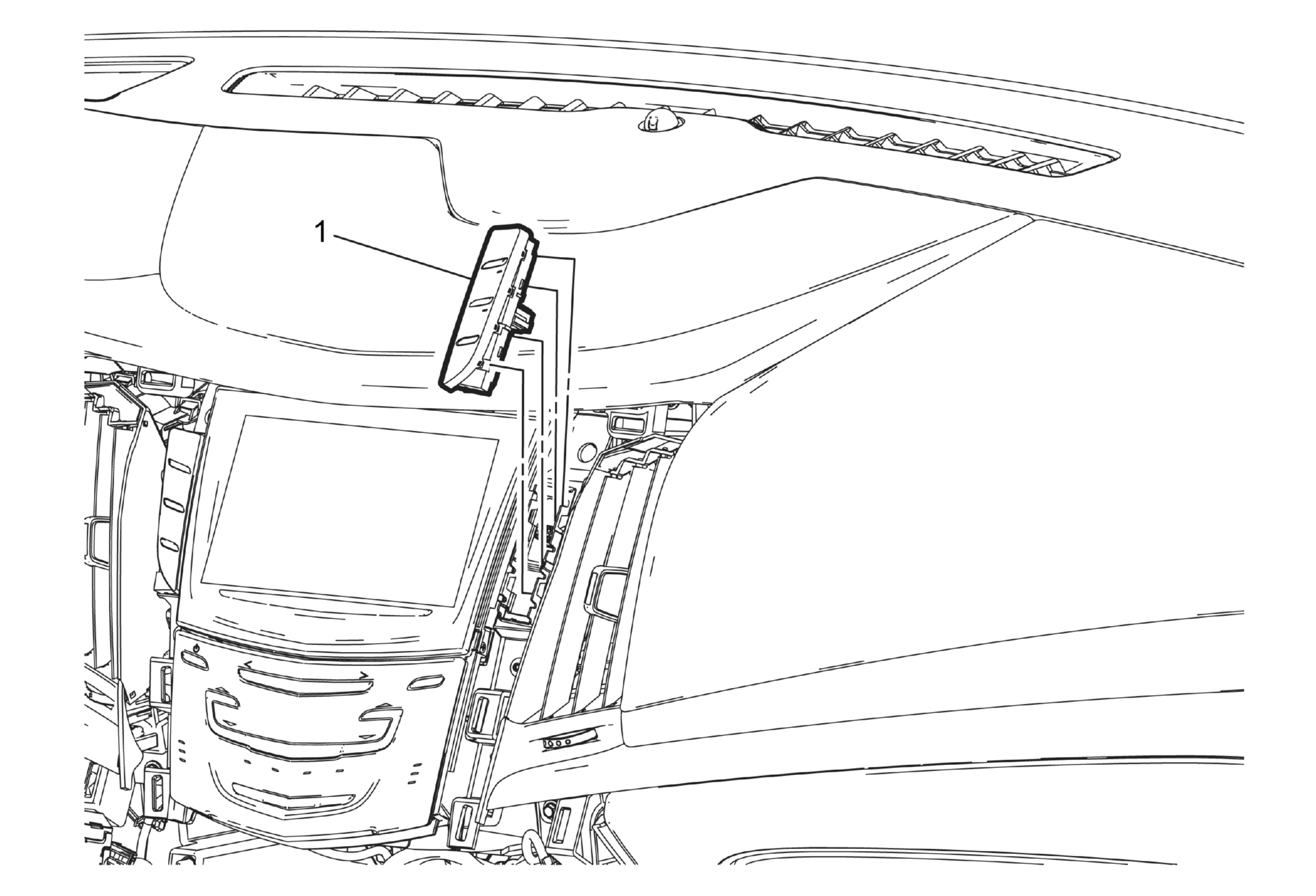

Fig 1: Vehicle Stability Control System Switch (Cadillac)
GM3648287Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) .
1 Vehicle Stability Control System Switch

Procedure

  1. Using a flat bladed tool, release the two locking tabs on both sides of the switch.
  2. Lift the switch from the instrument panel.
  3. Disconnect the electrical connector.
