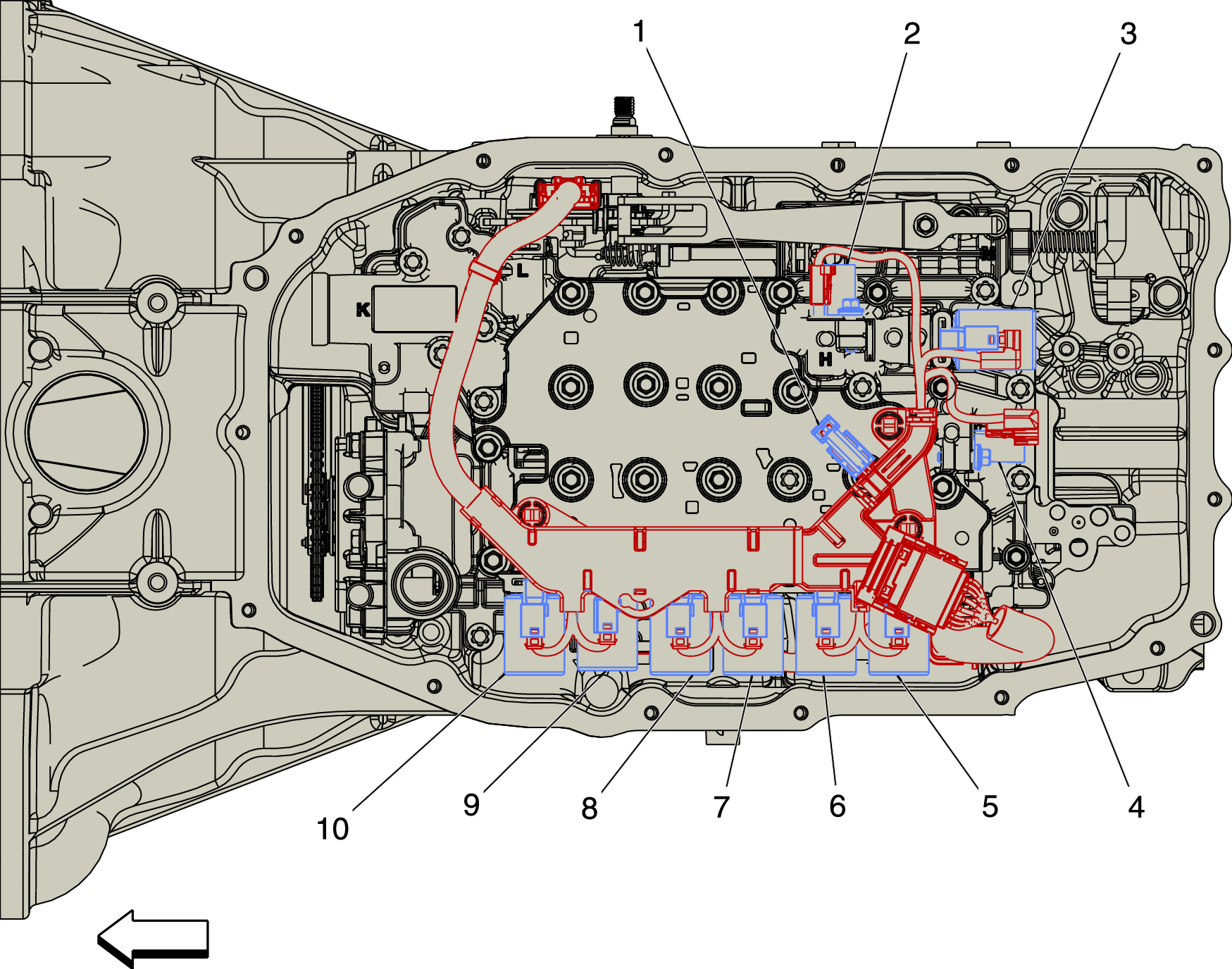

Automatic Transmission Valve Body Components (M5U)
Automatic Transmission Valve Body Components (M5U)
| Items |
|---|
| 1. B13 Transmission Fluid Temperature Sensor |
| 2. Q77H Transmission Control Solenoid Valve 8 (M5U) Q77H Transmission Control Solenoid Valve 8 (M5U) |
| 3. Q77F Transmission Control Solenoid Valve 6 (M5U) Q77F Transmission Control Solenoid Valve 6 (M5U) |
| 4. Q77J Transmission Control Solenoid Valve 9 (M5U) Q77J Transmission Control Solenoid Valve 9 (M5U) |
| 5. Q77B Transmission Control Solenoid Valve 2 (M5U) Q77B Transmission Control Solenoid Valve 2 (M5U) |
| 6. Q77A Transmission Control Solenoid Valve 1 (M5U) Q77A Transmission Control Solenoid Valve 1 (M5U) |
| 7. Q77E Transmission Control Solenoid Valve 5 (M5U) Q77E Transmission Control Solenoid Valve 5 (M5U) |
| 8. Q77C Transmission Control Solenoid Valve 3 (M5U) Q77C Transmission Control Solenoid Valve 3 (M5U) |
| 9. Q77D Transmission Control Solenoid Valve 4 (M5U) Q77D Transmission Control Solenoid Valve 4 (M5U) |
| 10. Q77G Transmission Control Solenoid Valve 7 (M5U) Q77G Transmission Control Solenoid Valve 7 (M5U) |
