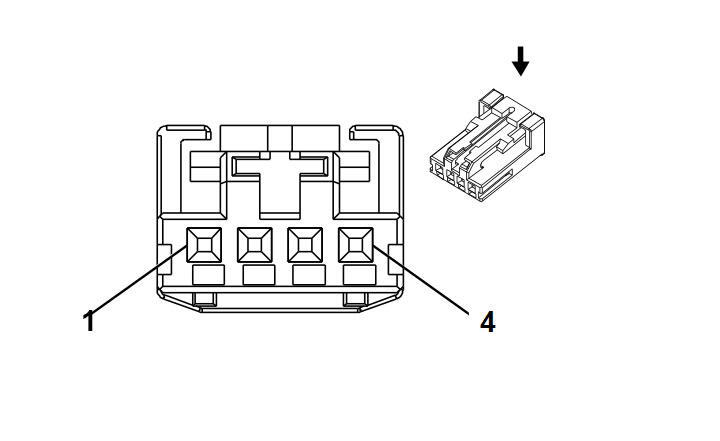

K175 Center Console Compartment Cooler Control Module
|
|
Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13969166
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1050 |
Ground |
I |
- |
| 2 |
0.35 |
BN |
6532 |
Compartment Cooler Control Signal |
I |
- |
| 3 |
0.35 |
GY/BK |
2546 |
Compartment Cooler Indicator Control |
I |
- |
| 4 |
0.5 |
VT/BK |
739 |
Run/Crank Ignition 1 Voltage |
I |
- |
