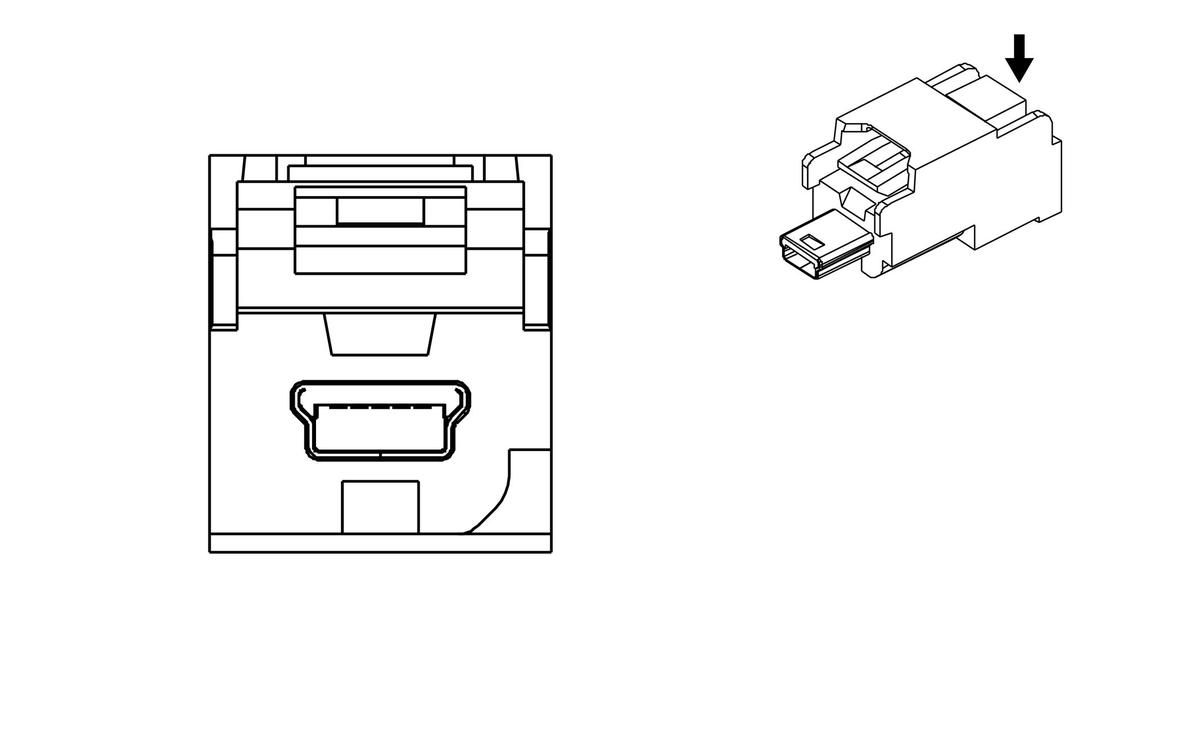

P17 Info Display Module X3 (IO5/IO6+U42-Z75)
|
|
Connector Part Information
- Harness Type: Instrument Panel LVDS
- OEM Connector: 13587999
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 5-Way M 2.0 Mini B USB Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
LVDS |
- |
(Infotainment) Infotainment Display Signal |
I |
- |
