Collision Avoidance - Left Front and Right Front Short Range Radars (UGN)

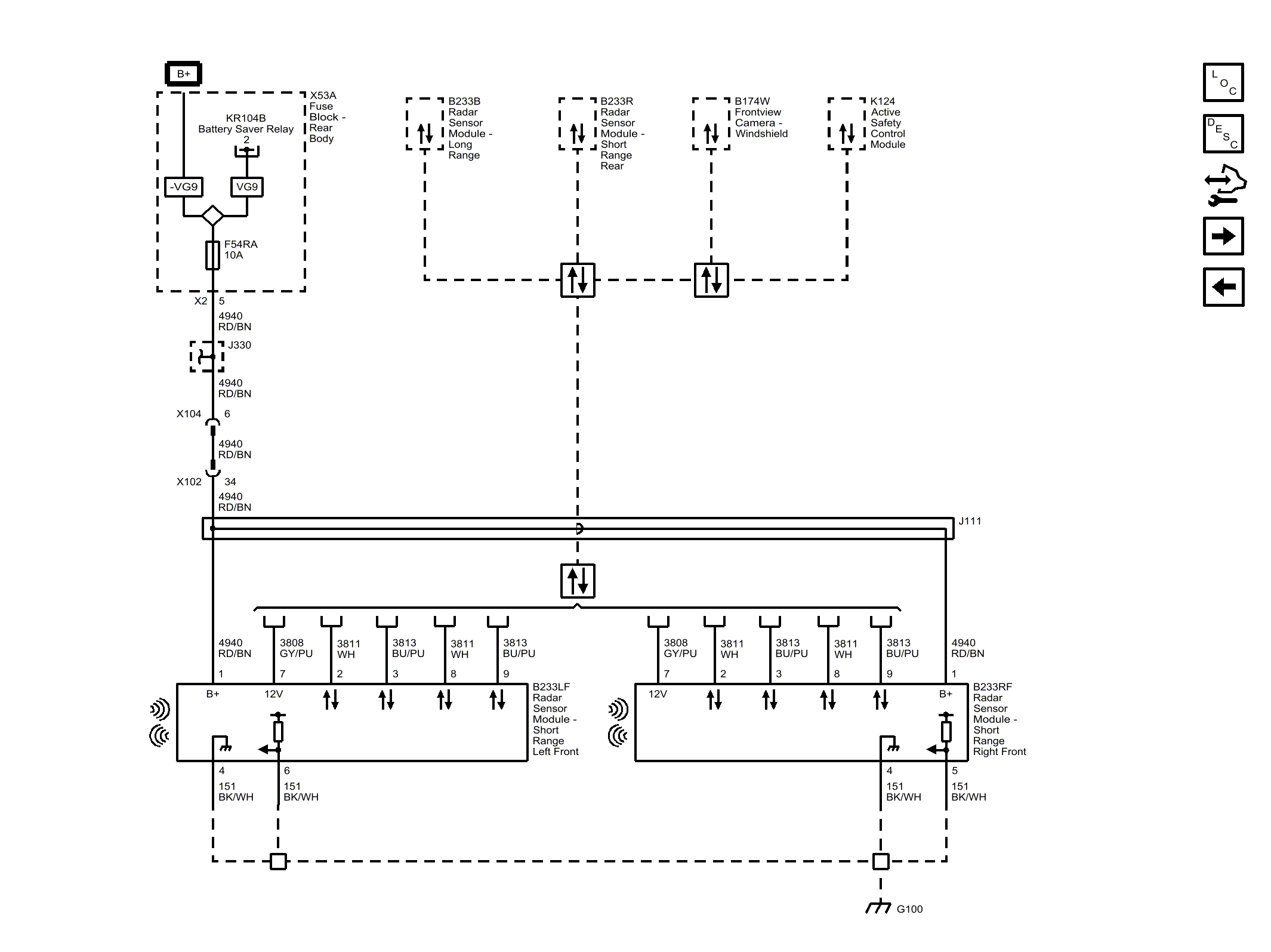

Fig 1: Collision Avoidance - Left Front and Right Front Short Range Radars (UGN)
GM4306145Courtesy of GENERAL MOTORS COMPANY
