Windshield Washer Solvent Container Level Sensor Replacement

Preliminary Procedures

1. Headlamp Replacement
2. Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer solvent container level sensor is removed.

Procedure

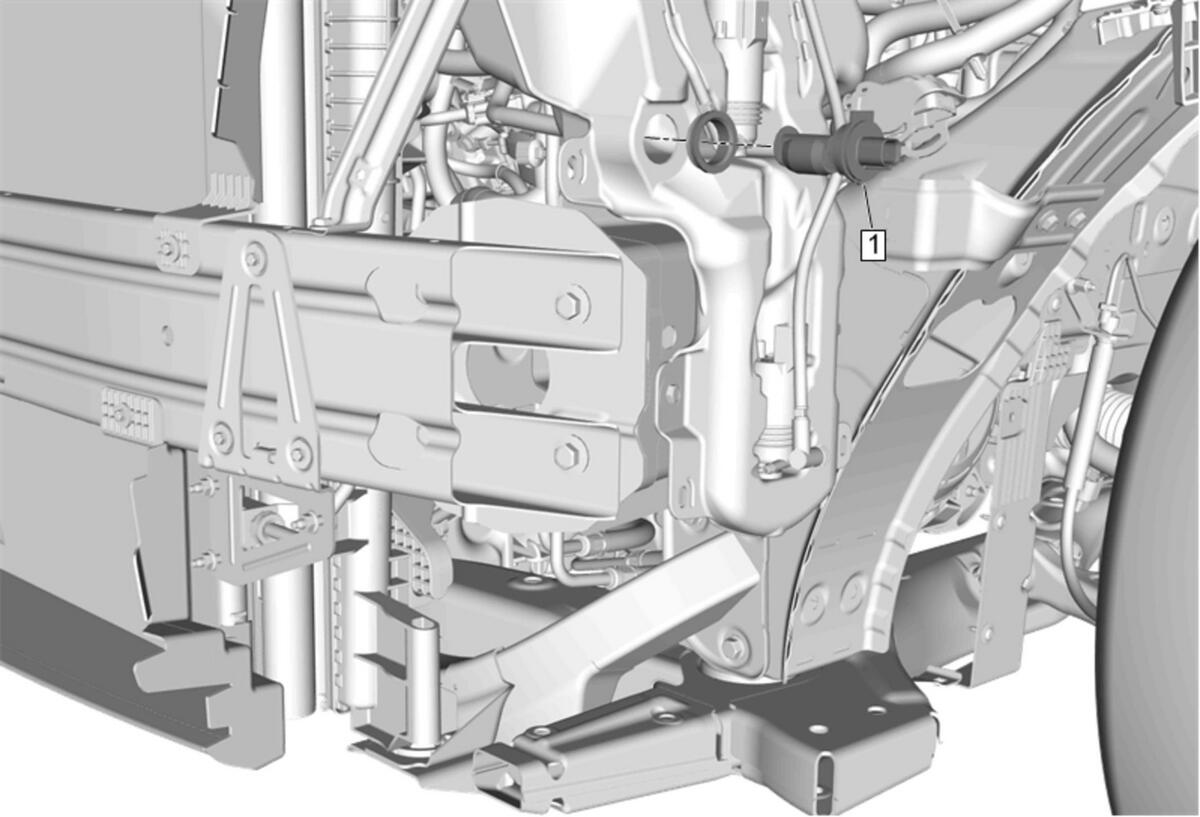

1. Disconnect the electrical connector.
2. Using the appropriate tools, place under each side of the level sensor, twist and lift in opposite directions to disengage the level sensor from the windshield washer solvent container and grommet.
