Forward Lamp Harness Engine Compartment Components

Forward Lamp Harness Engine Compartment Components

Items
1. P12L Horn - Left P12L Horn - Left
2. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3. B55 Hood Ajar Switch B55 Engine Hood Switch
4. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5. P12R Horn - Right P12R Horn - Right

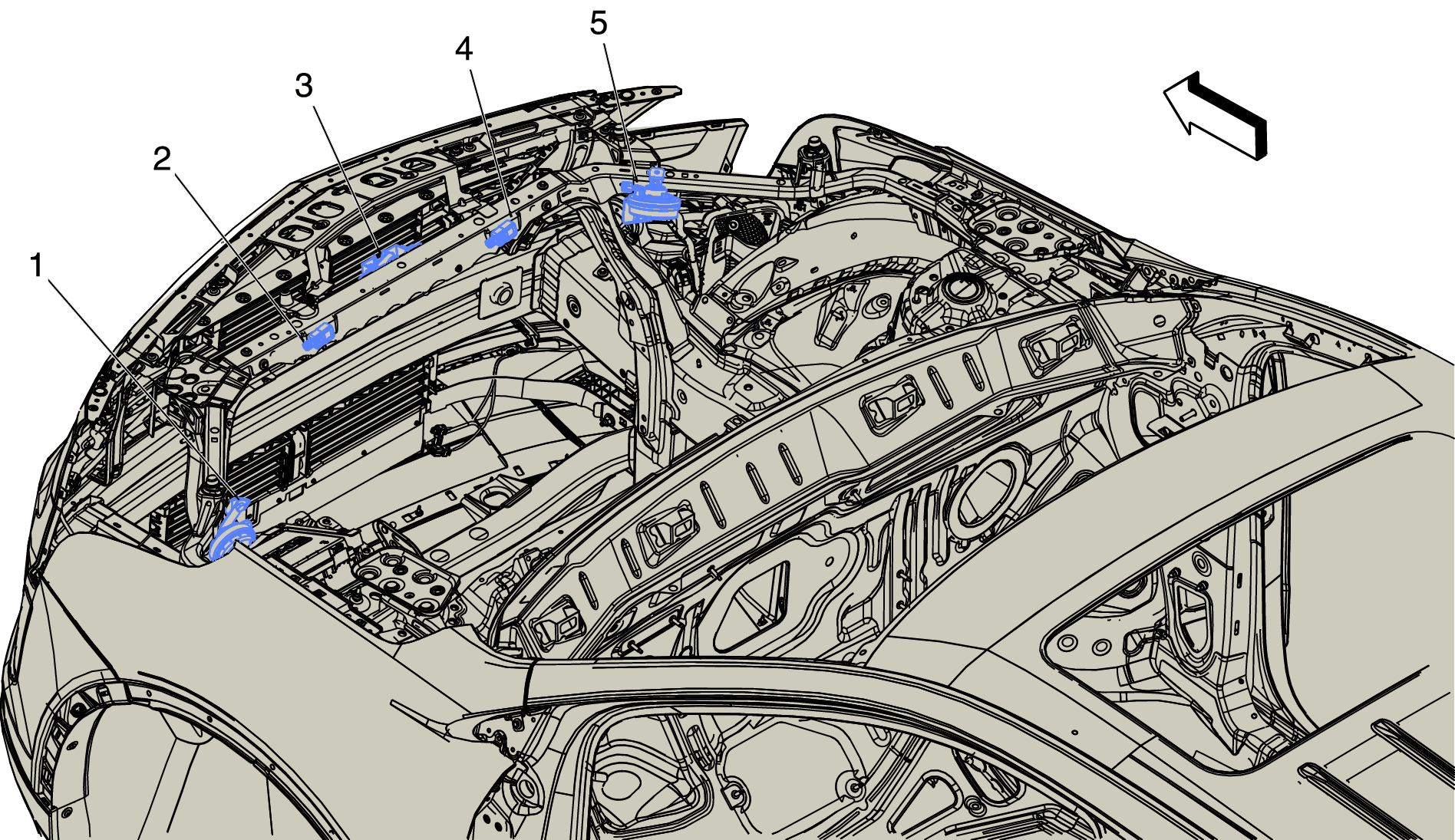

Fig 1: Forward Lamp Harness Engine Compartment Components
GM4278447Courtesy of GENERAL MOTORS COMPANY
