Left Side of Engine Compartment Components

Left Side of Engine Compartment Components

Items
1. B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3. P25 Power Sounder Content Theft Deterrent Alarm Module (UTR) P25 Power Sounder Content Theft Deterrent Alarm Module (UTR)
4. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
5. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
6. X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4 (U4G/V92)X50D Fuse Block - Battery X5X50D Fuse Block - Battery X6X50D Fuse Block - Battery X7X50D Fuse Block - Battery X8X50D Fuse Block - Battery X10
7. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5
8. B110 Battery Sensor Module B110 Battery Sensor Module X1B110 Battery Sensor Module X2
9. C1 Battery
10. K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3

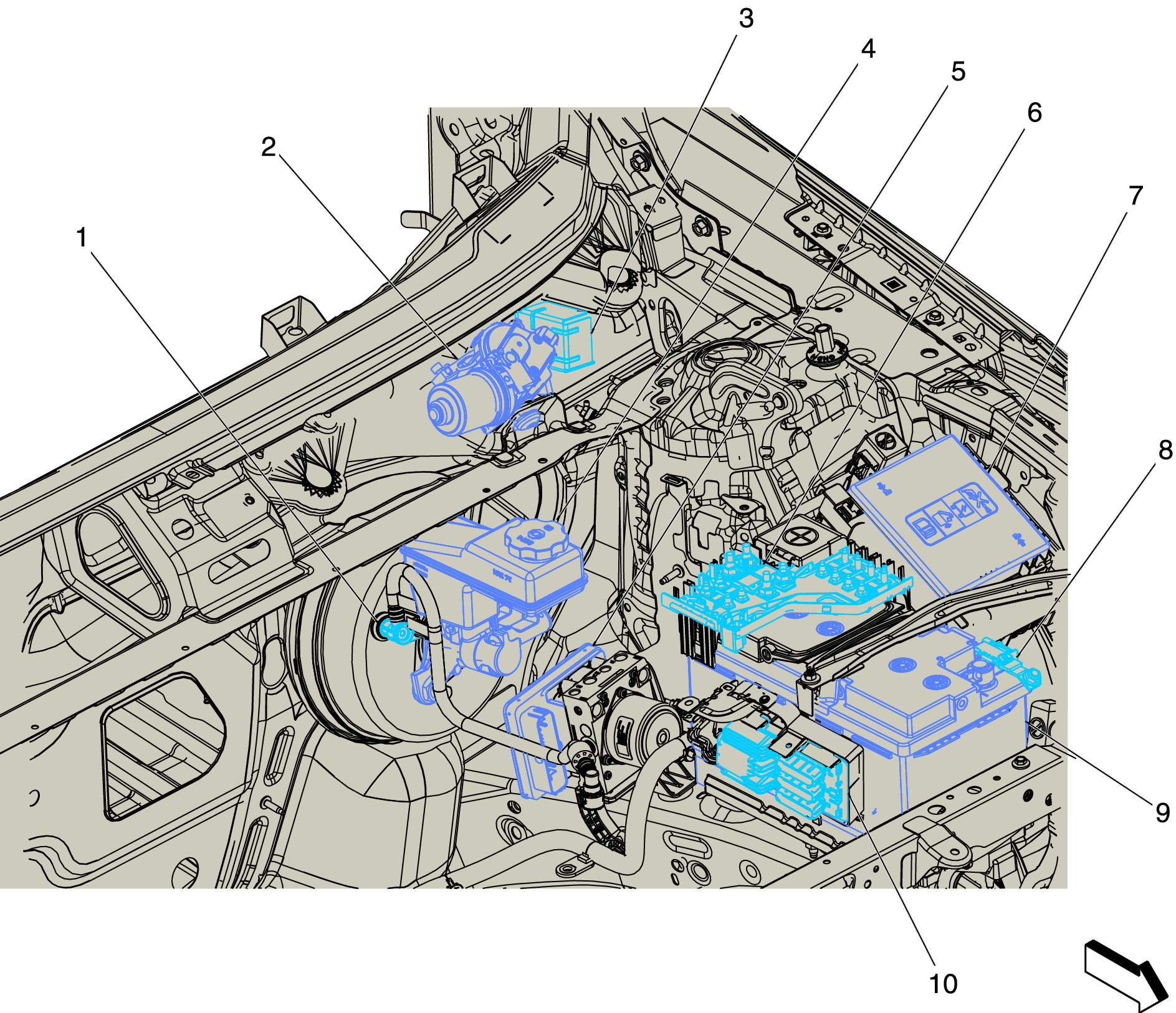

Fig 1: Left Side of Engine Compartment Components
GM4278500Courtesy of GENERAL MOTORS COMPANY
