Above Center of Windshield Components (without C3U)

Above Center of Windshield Components (without C3U)

Items
1. B165 Content Theft Deterrent Sensor Module (UTR) B165 Content Theft Deterrent Sensor Module (UTR)
2. B24 Cellular Phone Microphone B24 Mobile Telephone Microphone
3. A10 Inside Rearview Mirror A10 Inside Rearview Mirror X1 (DD8/DRZ)A10 Inside Rearview Mirror X2 (DRZ)
4. B174W Frontview Camera - Windshield (UEU) B174W Frontview Camera - Windshield (UEU)
5. B200 Rain Sensor Module (CE1) B200 Rain Sensor Module (CE1)
6. B160 Windshield Temperature and Inside Moisture Sensor (without CE1) B160 Windshield Temperature and Inside Moisture Sensor (-CE1)

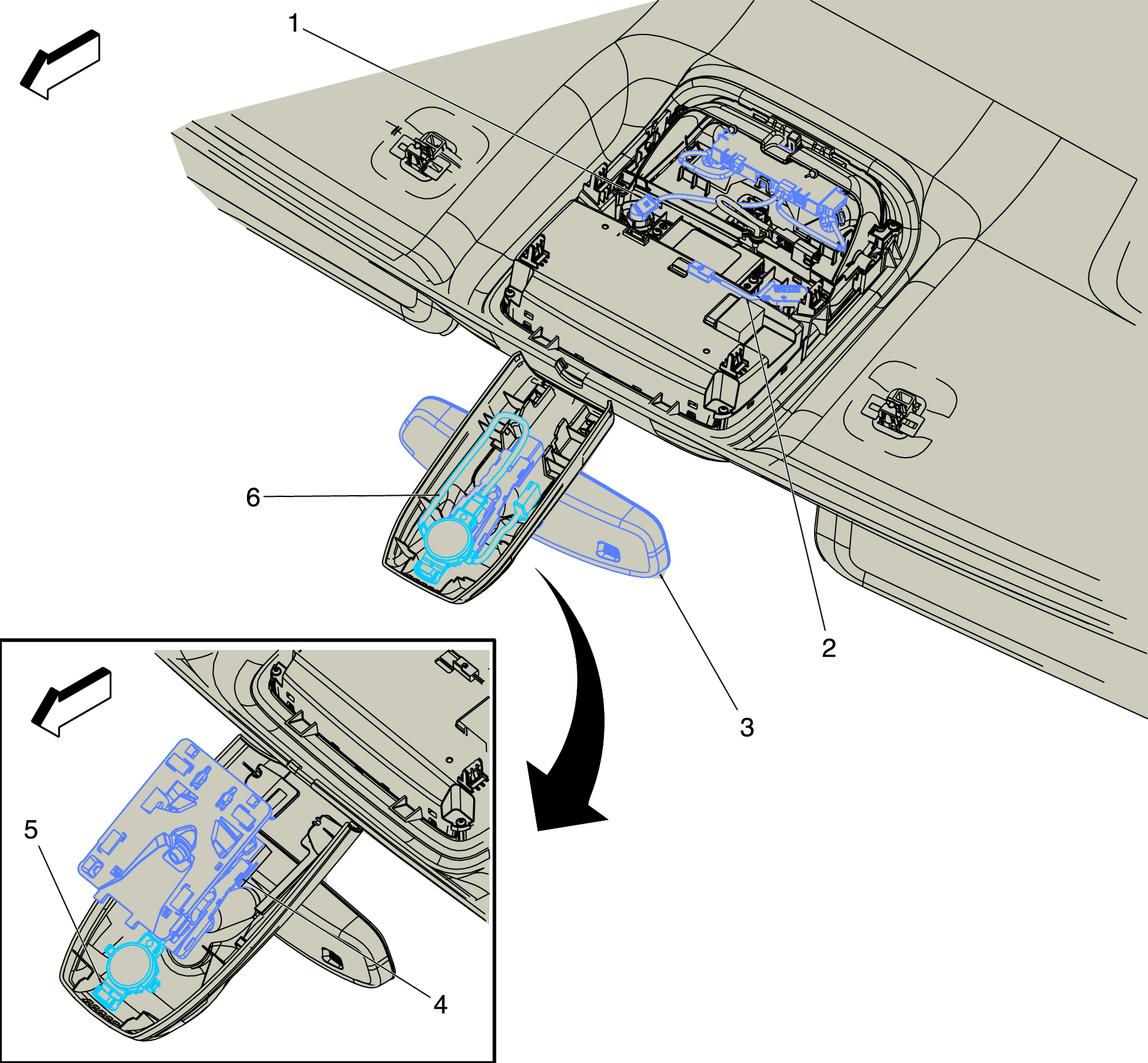

Fig 1: Above Center of Windshield Components (without C3U)
GM4279181Courtesy of GENERAL MOTORS COMPANY
