Driver Seat Back Components

Driver Seat Back Components

Items
1. M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver
2. M73A Seat Blower Motor - Driver Back (KU9) M73A Seat Blower Motor - Driver Back (KU9)
3. M53D Seat Lumbar Support Motor - Driver (AL9) M53D Seat Lumbar Support Motor - Driver (AL9)

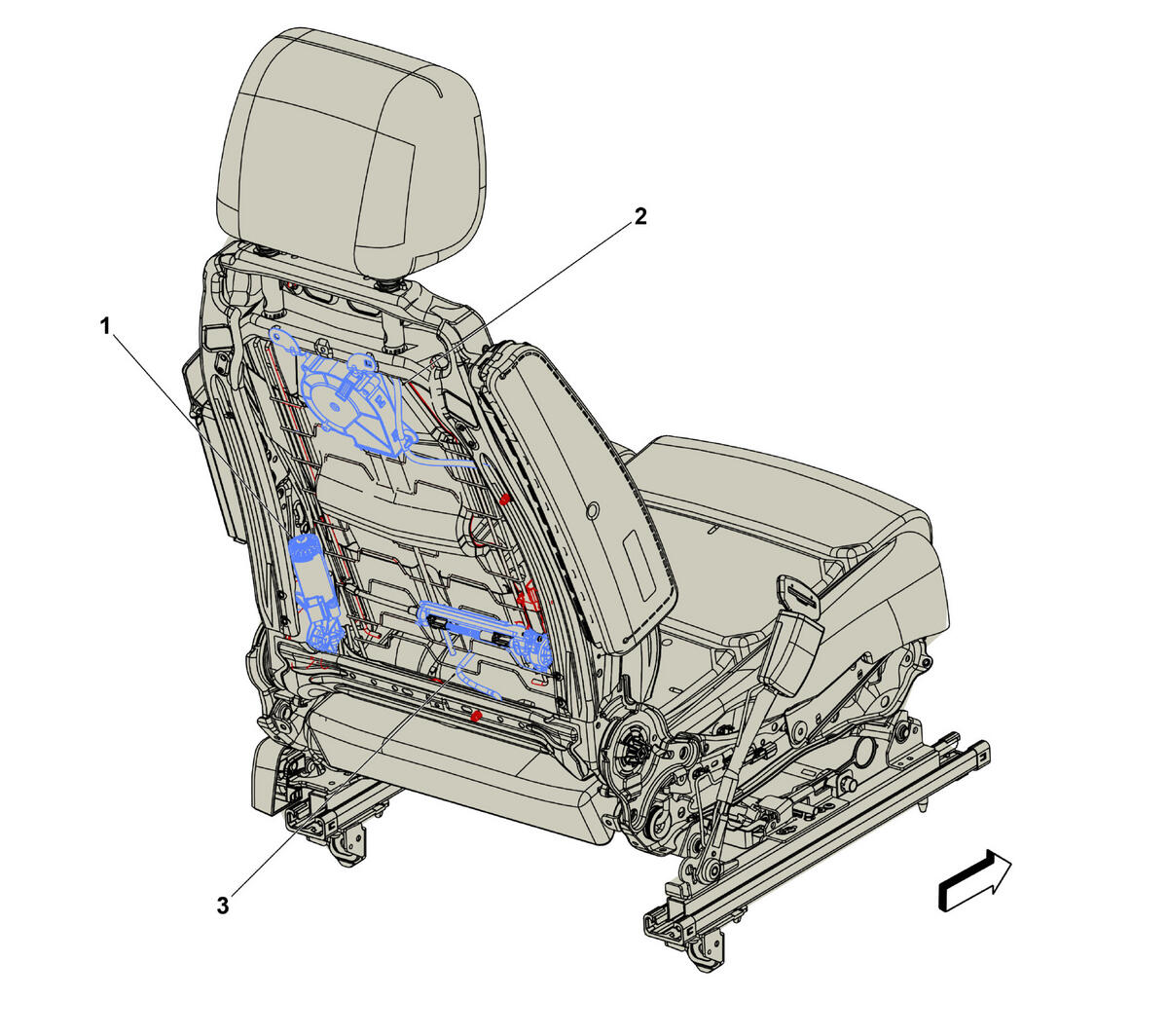

Fig 1: Driver Seat Back Components
GM4341340Courtesy of GENERAL MOTORS COMPANY
