Passenger Seat Back Components

Passenger Seat Back Components

Items
1. M73B Seat Blower Motor - Passenger Back (KU9) M73B Seat Blower Motor - Passenger Back (KU9)
2. M53P Seat Lumbar Support Motor - Passenger (AT9) M53P Seat Lumbar Support Motor - Passenger
3. M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger

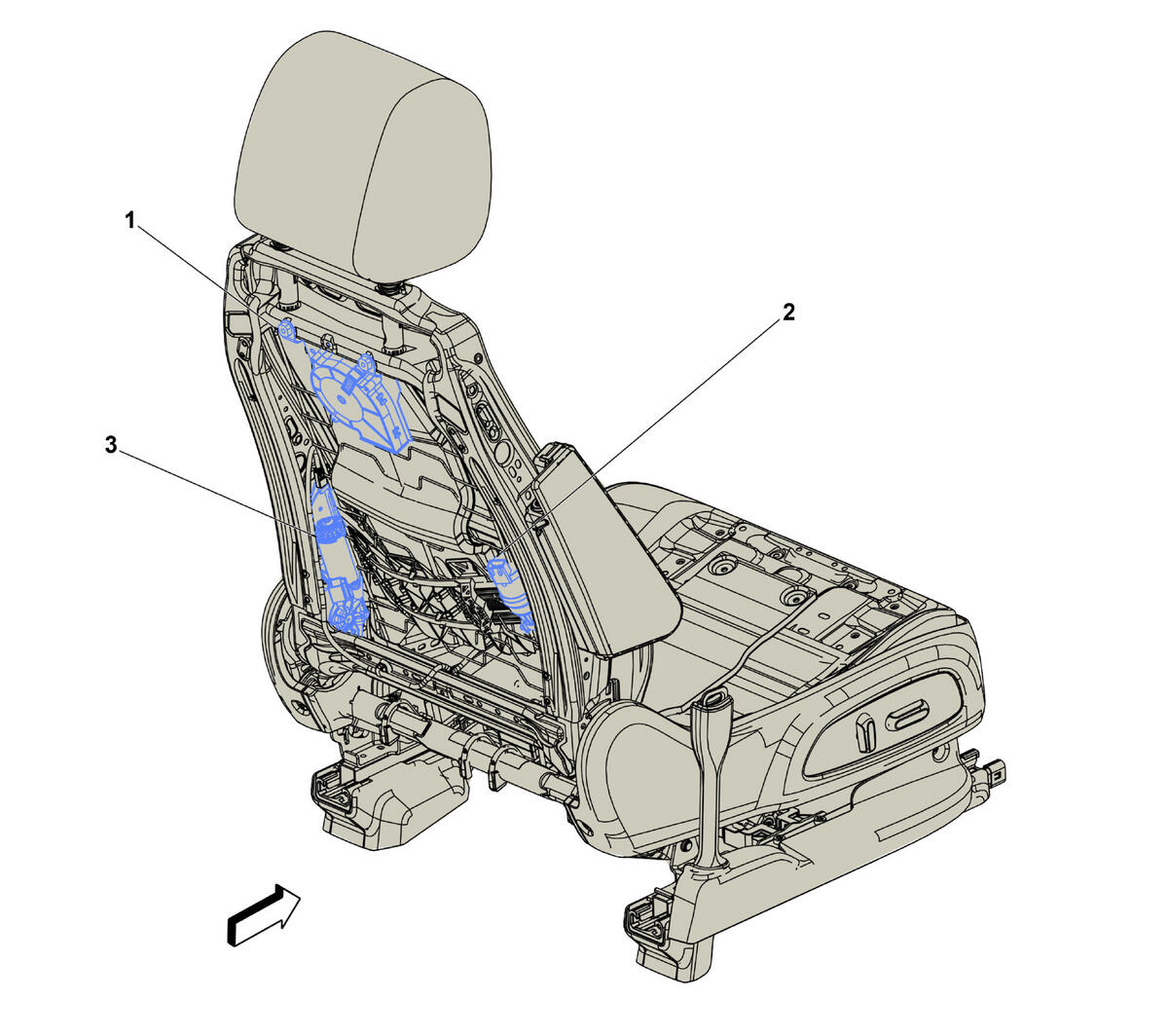

Fig 1: Passenger Seat Back Components
GM4341346Courtesy of GENERAL MOTORS COMPANY
