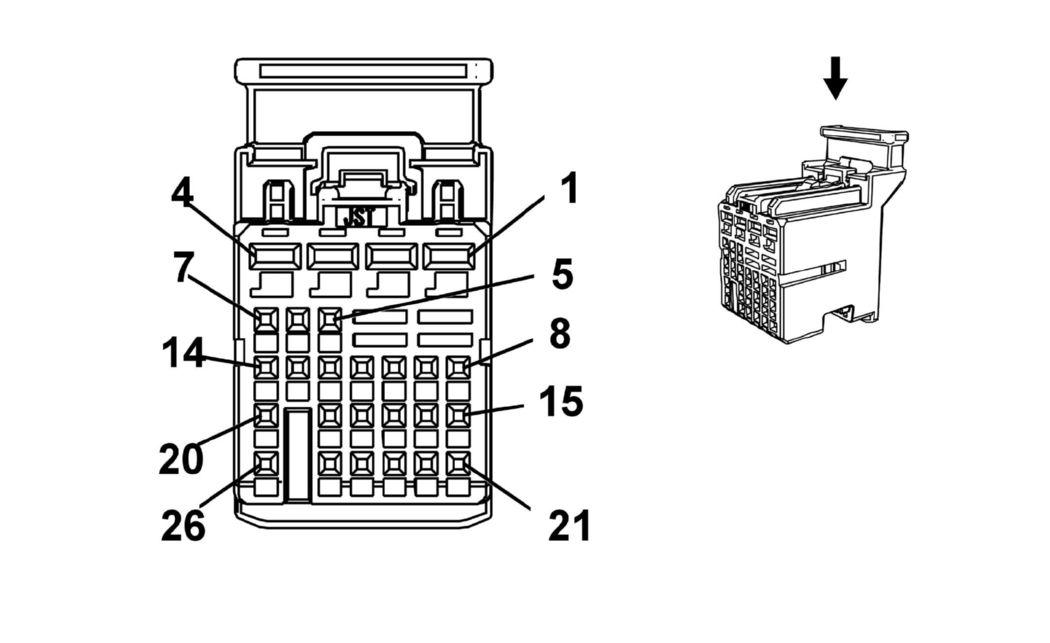

K9 Body Control Module X4

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1	YE	312	Right Headlamp Low Beam Control	II	-
2	1	YE	712	Left Headlamp Low Beam Control	II	-
3	0.75	GN/PU	1315	Right Front Turn Signal Lamp Control	II	-
4	0.75	WH/YE	7541	Right Rear Stop Lamp Control	II	-
5	0.5	GY/BN	309	Right Park Lamp Control	I	-
6	0.5	PU/GY	709	Left Park Lamp Control	I	-
7	0.5	PU/GY	709	Left Park Lamp Control	I	-
8	-	-	-	Not Occupied	-	-
9	0.35	GY/PU	3264	Logistic Mode Relay Close Control	I	VG9
10	0.35	YE	5420	Rear Wiper Motor Relay Coil Control	I	-
11	0.5	GN/WH	24	Backup Lamp Control	I	T79
12	0.35	GY/GN	70	RAP Relay Switch Control	I	-
13	0.35	YE/GY	122	Rear Fog Lamp Control	I	T79
14	0.35	BN/GY	2268	Windshield Washer Relay Control	I	-
15	0.35	GN/PU	5199	Run/Crank Relay Coil Control	I	-
16	0.35	GY	91	Windshield Wiper Motor Relay Coil Control	I	-
17	0.5	BN/GN	196	Windshield Wiper Motor Park Switch Signal	I	-
18 - 21	-	-	-	Not Occupied	-	-
22	0.35	PU/YE	5985	Accessory Wakeup Serial Data	I	-
23	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
24	0.5	BN/GN	109	Hood Ajar Switch Signal	I	-
25	0.35	YE/BU	4086	Pushbutton Start Challenge Active Signal	I	-
26	-	-	-	Not Occupied	-	-
