Electronic Shift Controls - Power, Ground, and Serial Data

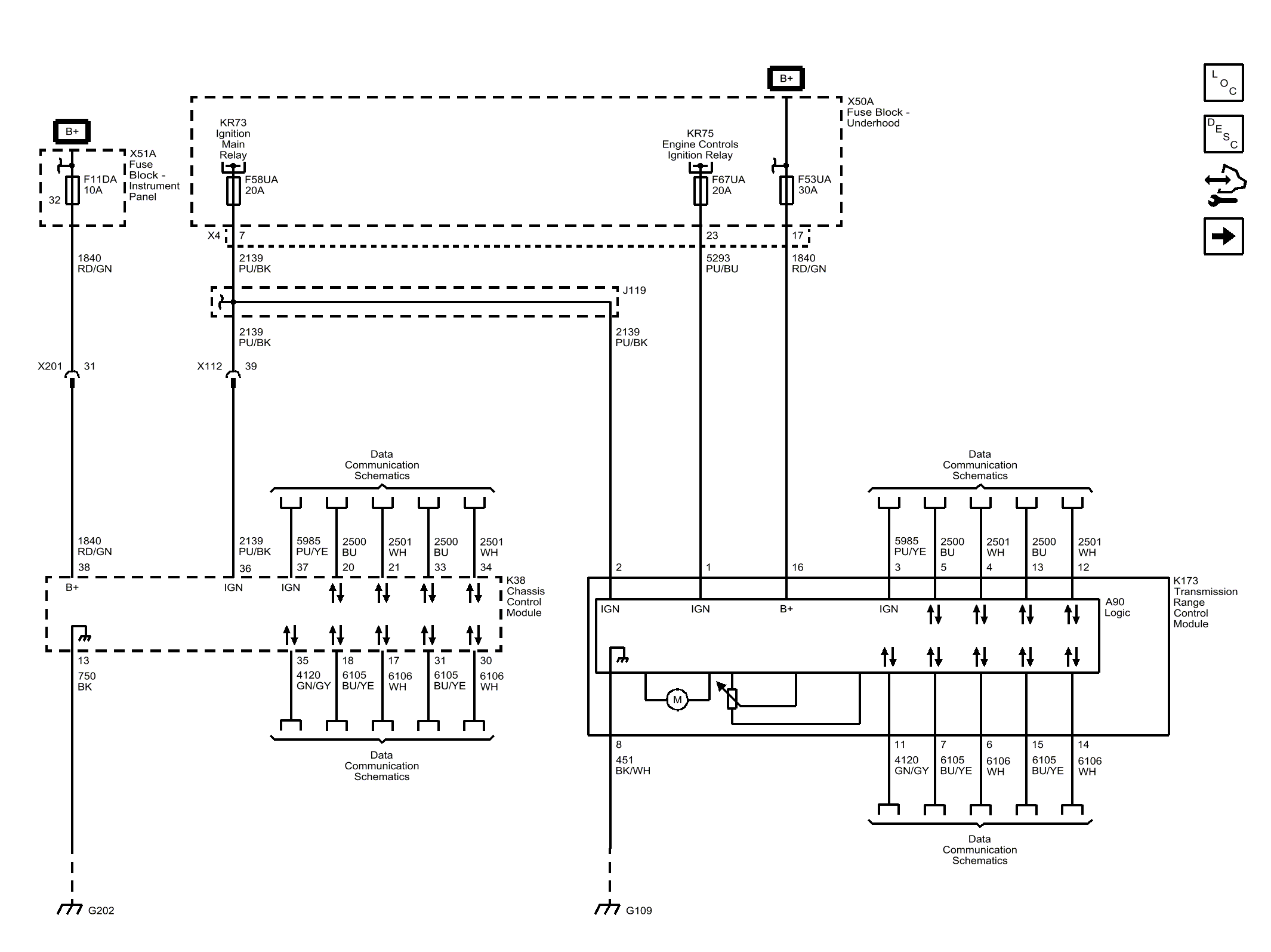

Fig 1: Electronic Shift Controls - Power, Ground, and Serial Data
GM4288962Courtesy of GENERAL MOTORS COMPANY
