Power Transfer Unit Input Shaft Assembly Removal

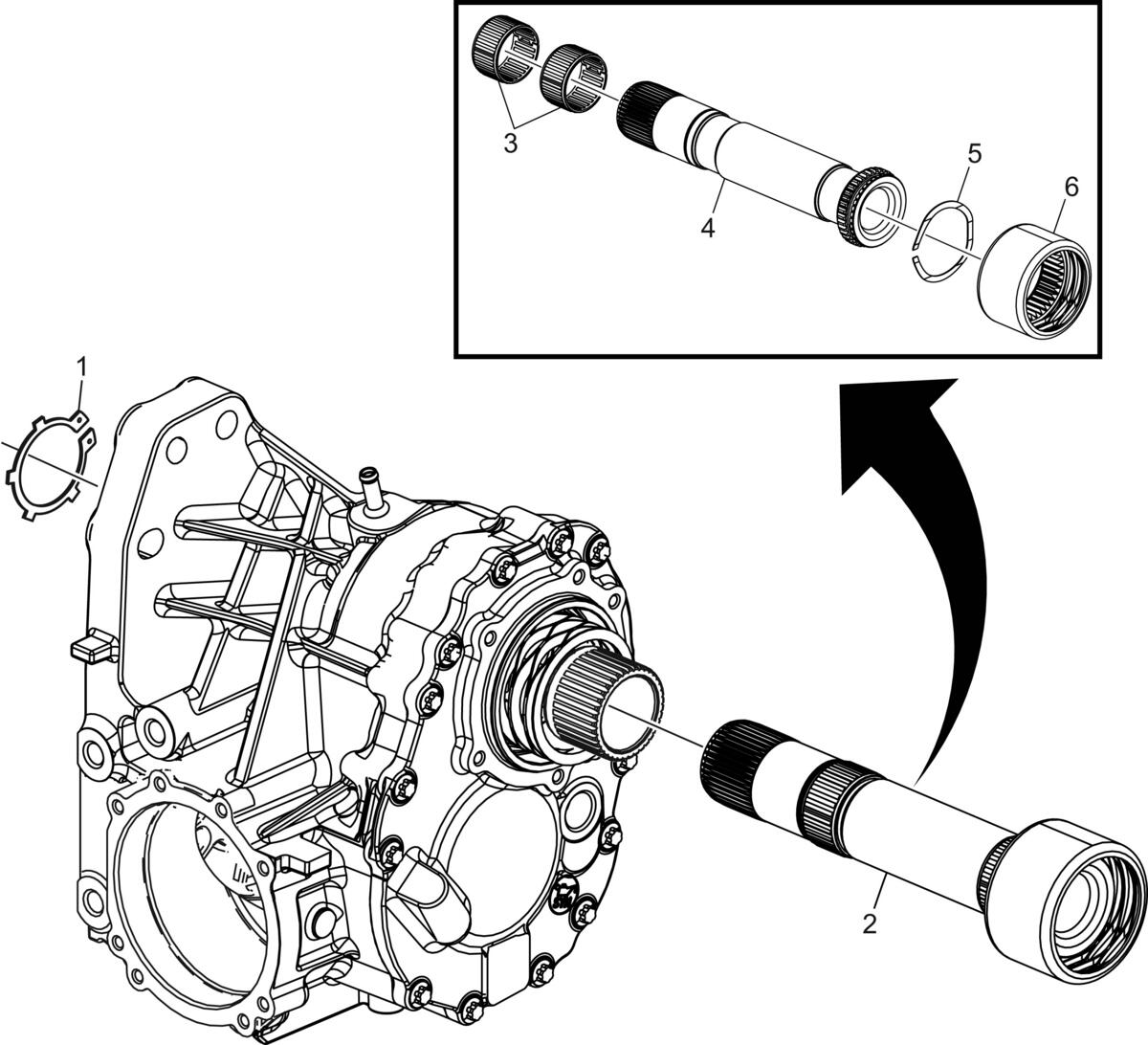

Courtesy of GENERAL MOTORS COMPANY Power Transfer Unit Input Shaft Assembly Removal
| Callout |
Component Name |
| 1 |
Power Transfer Input Shaft Clip |
| 2 |
Power Transfer Unit Input Shaft Assembly |
| 3 |
Input Disconnect Shaft Needle Bearing (Qty: 2) |
| 4 |
Power Transfer Unit Input Shaft |
| 5 |
Power Transfer Unit Wave Ring |
| 6 |
Power Transfer Unit Shift Sleeve |
