Power, Ground, Serial Data and Front Controls

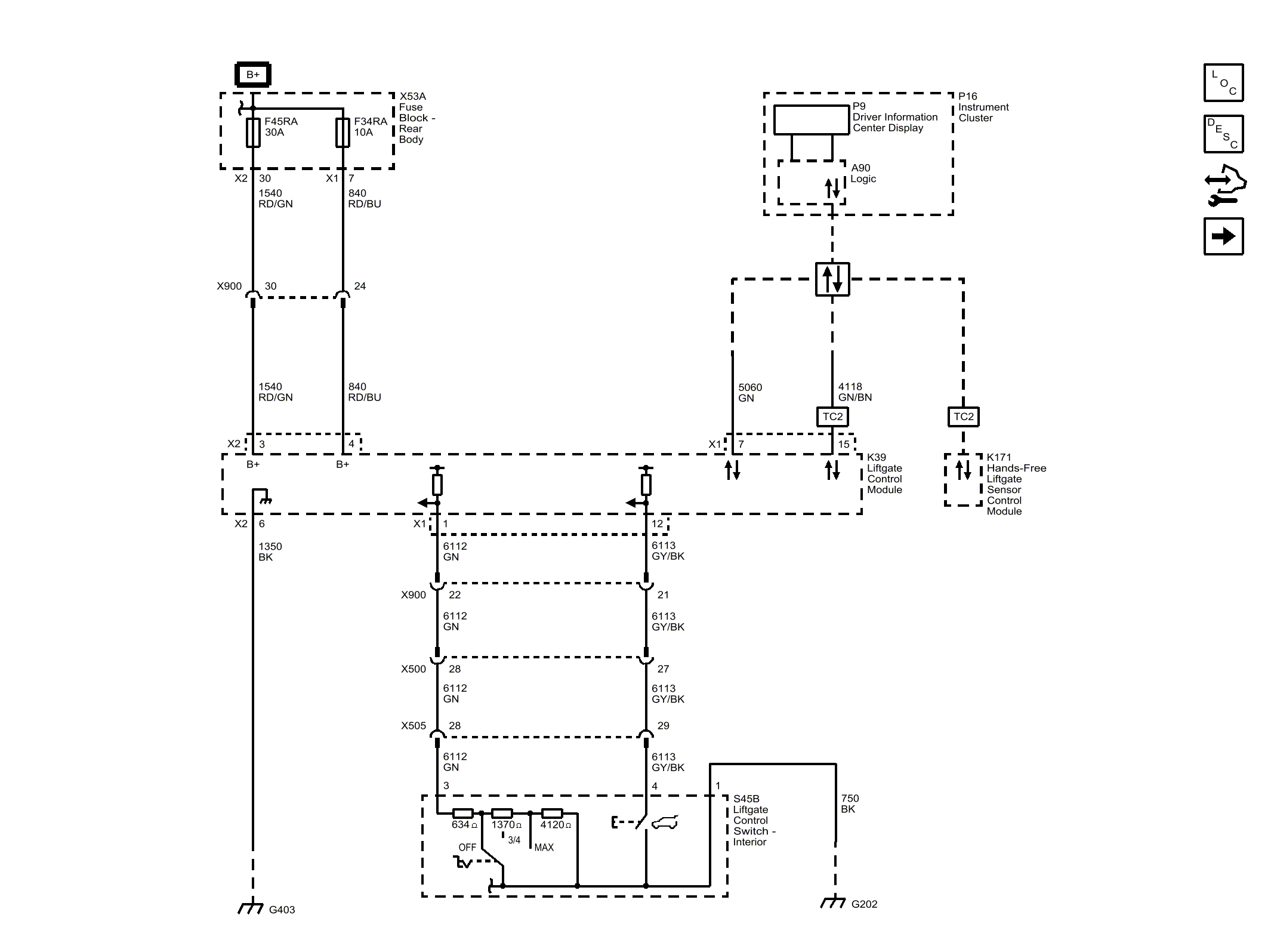

Fig 1: Power, Ground, Serial Data and Front Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
