Front Seat Lane Departure Warning Actuator Replacement

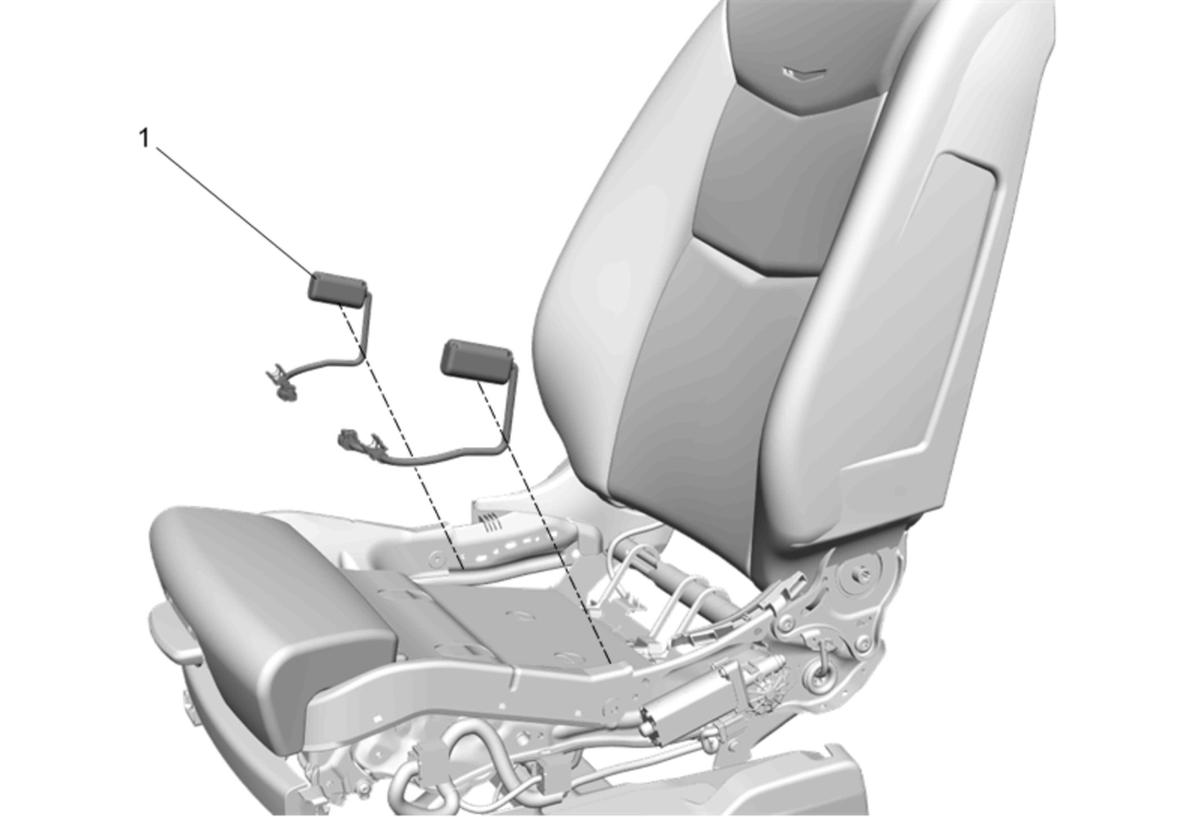

Fig 1: Front Seat Lane Departure Warning Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement
1	Front Seat Lane Departure Warning Actuator Procedure Disconnect the electrical connector. Note the location and routing of the wiring harness to ensure proper reinstallation.

Callout

Component Name

Preliminary Procedure
Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement

Front Seat Lane Departure Warning Actuator

Procedure

Disconnect the electrical connector.
Note the location and routing of the wiring harness to ensure proper reinstallation.
