Cadillac
>>
2017
>>
XT5 Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Park Assist - Rear Sensors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Park Assist - Rear Sensors

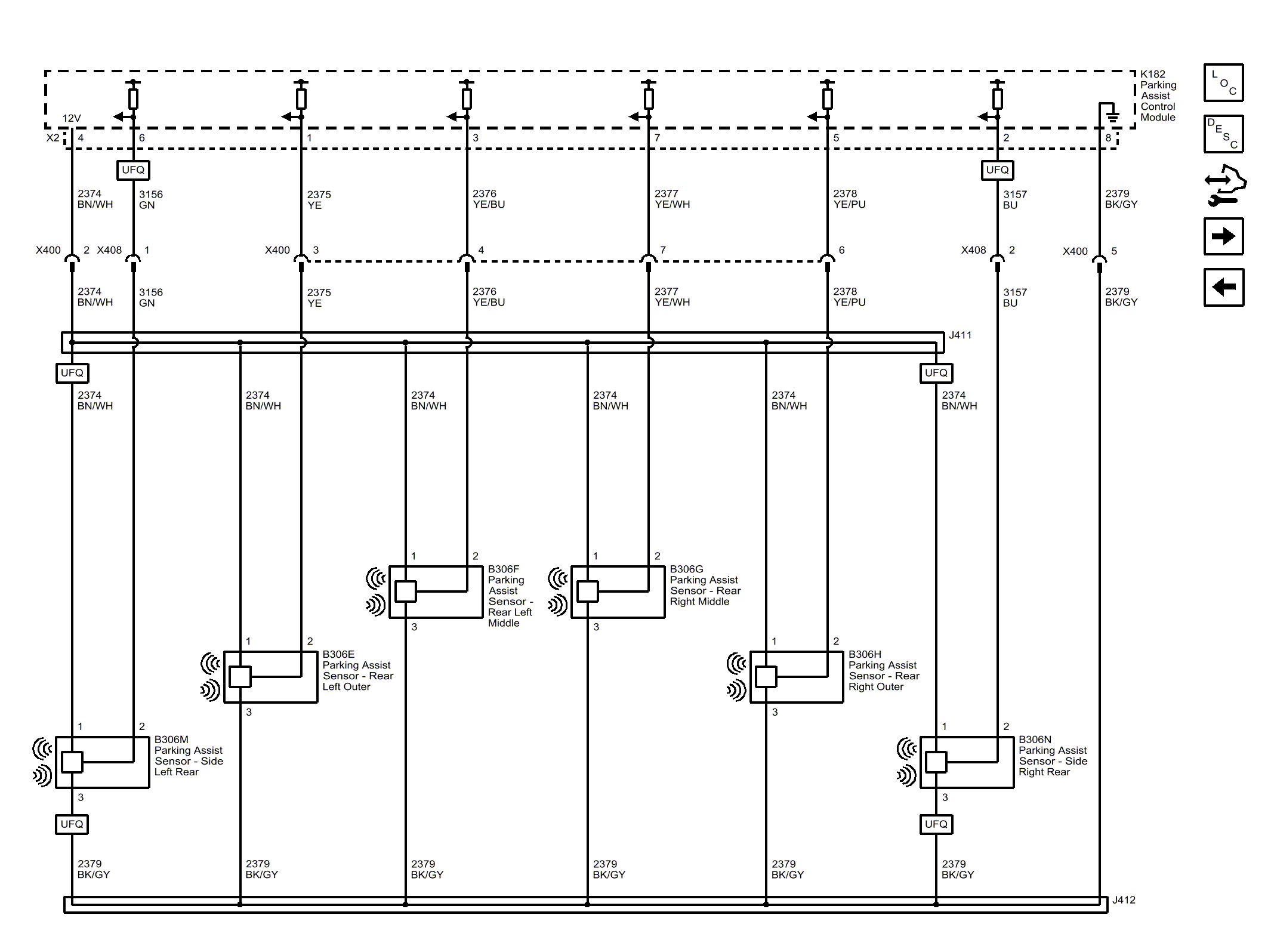

Fig 1: Park Assist - Rear Sensors
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
