Radio/Navigation System Wiring Schematics: Antennas

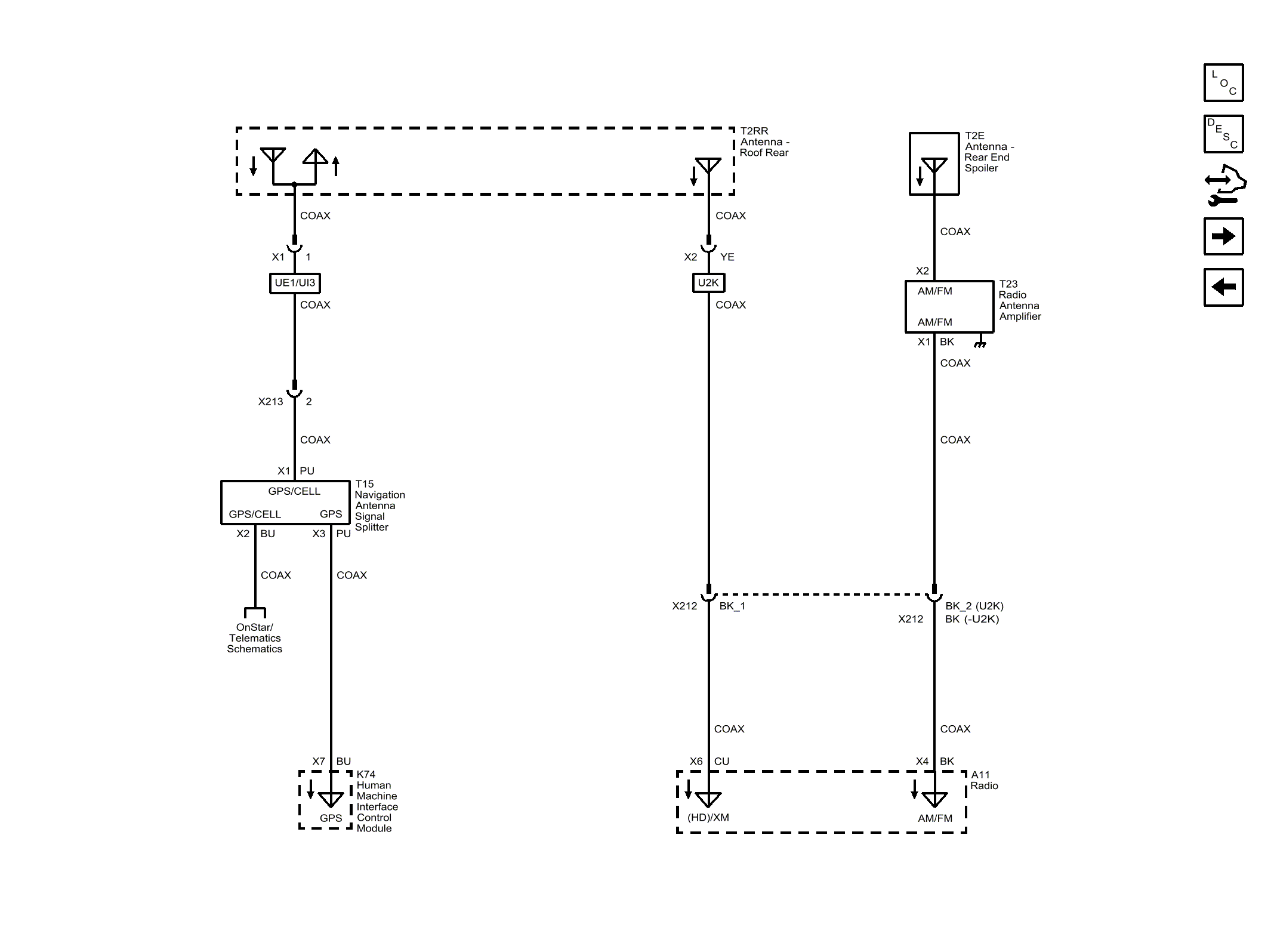

Fig 1: Antennas

GM4298533

Courtesy of GENERAL MOTORS COMPANY
