Liftgate Close Switch Replacement

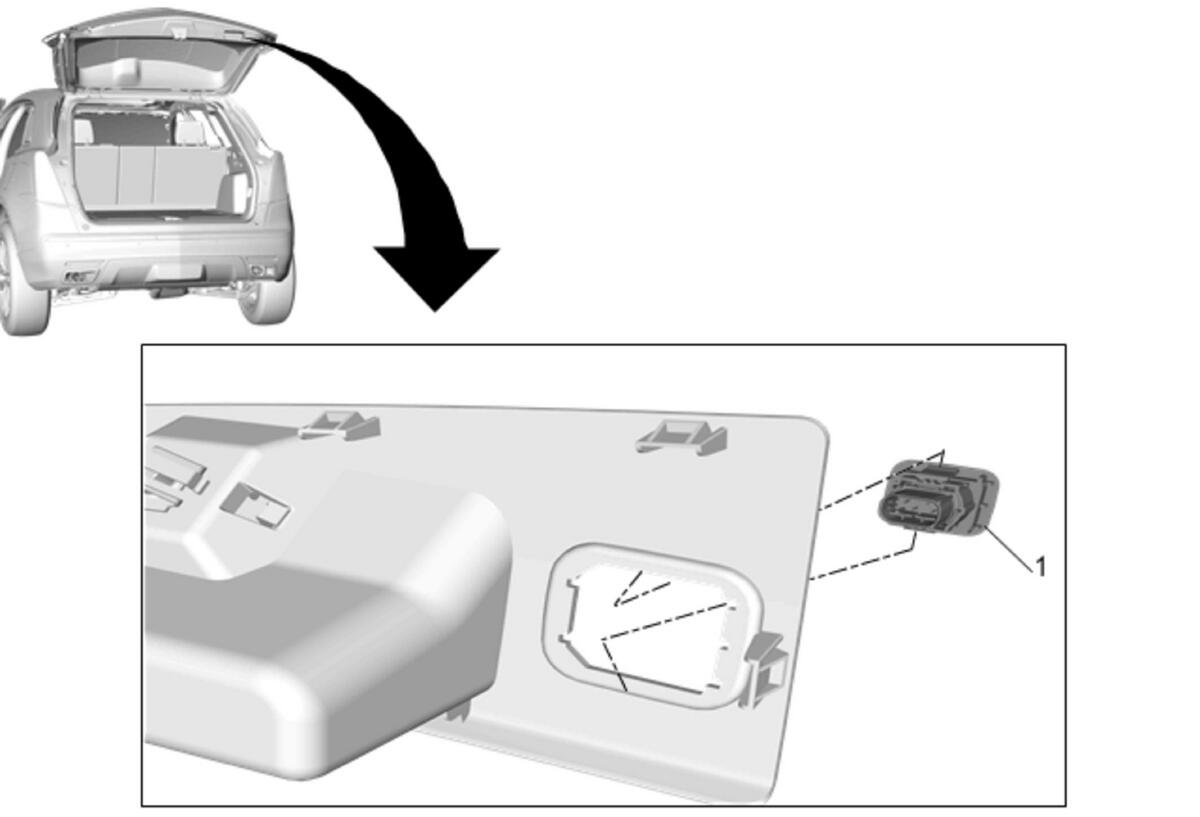

Fig 1: Liftgate Close Switch
GM4296316Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Liftgate Trim Finish Panel Pull Cup. Refer to Liftgate Trim Finish Panel Pull Cup Replacement
1 Liftgate Close Switch
Procedure
Release the liftgate close switch retainers and push out from the liftgate trim finish panel pull cup.
