Front Seat Adjuster Memory Module Bracket Replacement

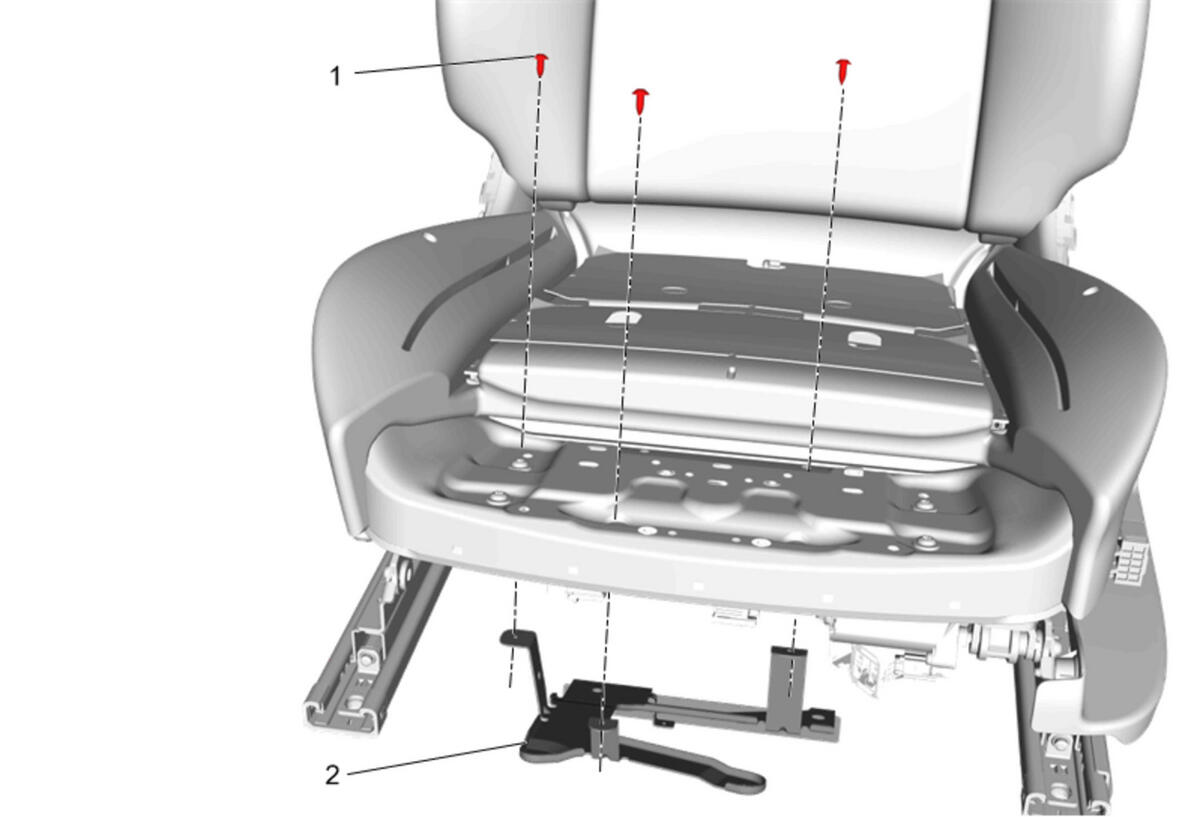

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition Front Seat Cushion Front Extension Frame. Refer to Front Seat Cushion Front Extension Frame Replacement |
|
| 1 | Front Seat Adjuster Memory Module Bracket Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Seat Adjuster Memory Module Bracket Procedure Disconnect and reposition harness as necessary. |
