Rear Side Door Window Regulator Replacement

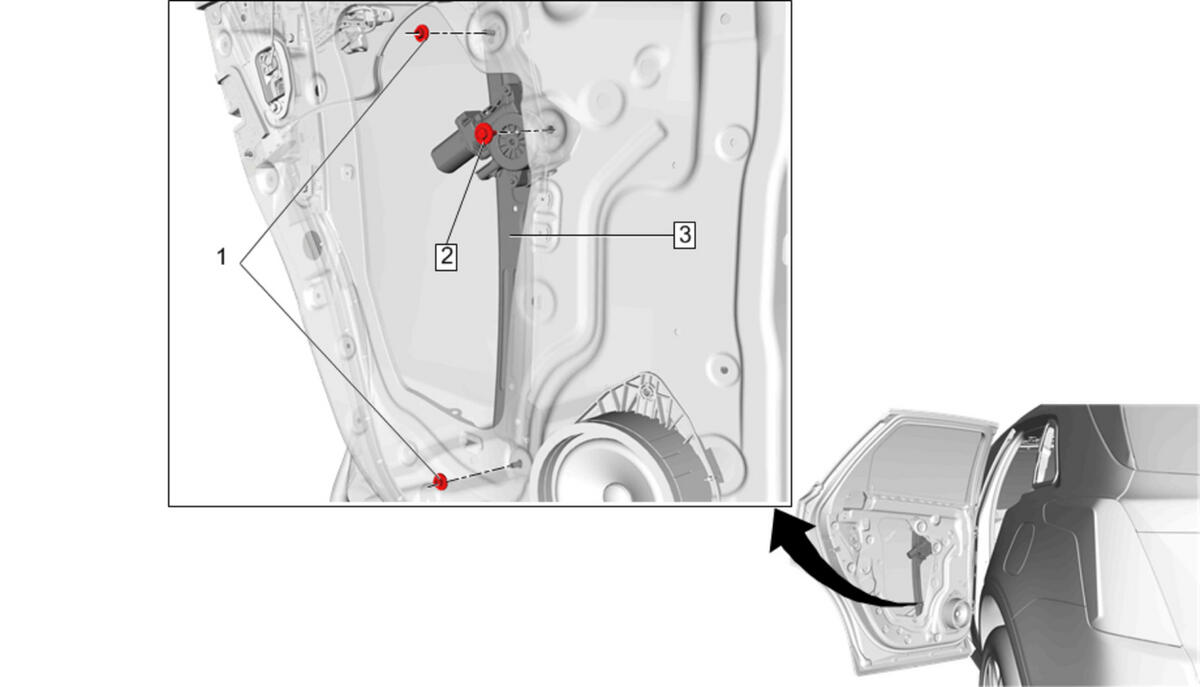

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Rear Side Door Water Deflector Replacement Place the rear side door window in the full up position and tape the window to the door frame.
1	Rear Side Door Window Regulator Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Release the window from the sash retaining clip. Tighten 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Bolt Procedure Tighten 11 N.m (97 lb in)
3	Rear Side Door Window Regulator Procedure Disconnect the electrical connector. Transfer all parts as necessary. Inspect the window for proper operation, adjust if necessary before installing the door trim.
