Rear Side Door Window Replacement

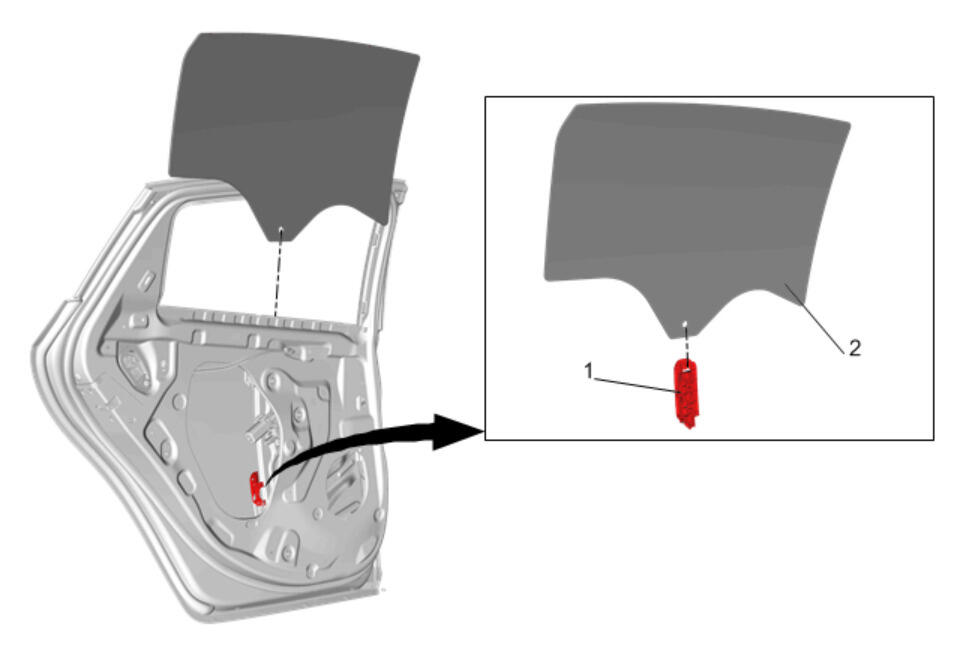

Fig 1: Rear Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. CAUTION: Refer to Paint Damage Caution . Preliminary Procedures Rear Side Door Window Channel Rear Retainer Replacement Rear Side Door Window Inner Sealing Strip Replacement Rear Side Door Window Belt Reveal Molding Replacement
1	Rear Side Door Window Regulator Guide Procedure Use masking tape to tape the window in the full up position to the door frame. Using the proper tool, release the window regulator guide from the window sash.
2	Rear Side Door Window Lower the window regulator guide full down. Remove the masking tape from the window. Tilt the window downward in the front, pull up on the back and pull the window out from the door frame. Inspect the window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

CAUTION:

Refer to Paint Damage Caution .

Preliminary Procedures

Rear Side Door Window Channel Rear Retainer Replacement
Rear Side Door Window Inner Sealing Strip Replacement
Rear Side Door Window Belt Reveal Molding Replacement

Rear Side Door Window Regulator Guide

Procedure

Use masking tape to tape the window in the full up position to the door frame.
Using the proper tool, release the window regulator guide from the window sash.

Rear Side Door Window

Lower the window regulator guide full down.
Remove the masking tape from the window.
Tilt the window downward in the front, pull up on the back and pull the window out from the door frame.
Inspect the window for proper operation before installing the door trim panel.
