Installation Procedure

    Fig 1: Battery Negative Cable
    GM4285190Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Negative Cable (3)
  2. Use an open ended wrench to hold the battery sensor ground tab, while tightening the battery negative cable nut. (2)
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Negative Cable Nut (1) Tighten 12 N.m (106 lb in)

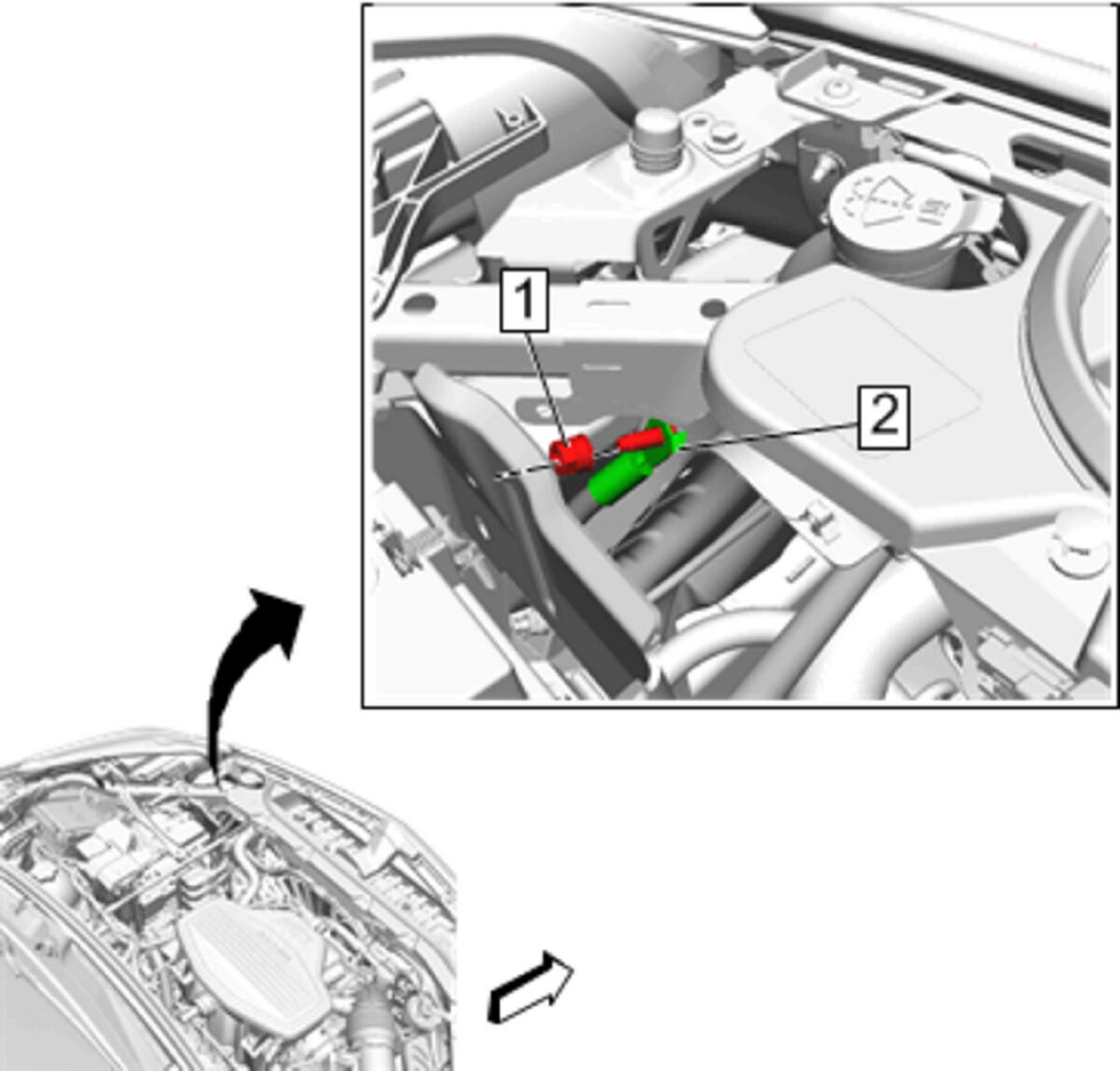

    4. Fig 2: Battery Negative Cable And Battery Negative Cable Frame Ground Fastener
    GM4285808Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Negative Cable (2)
  5. Install Battery Negative Cable Frame Ground Fastener (1) and tighten 9 N.m (80 lb in)

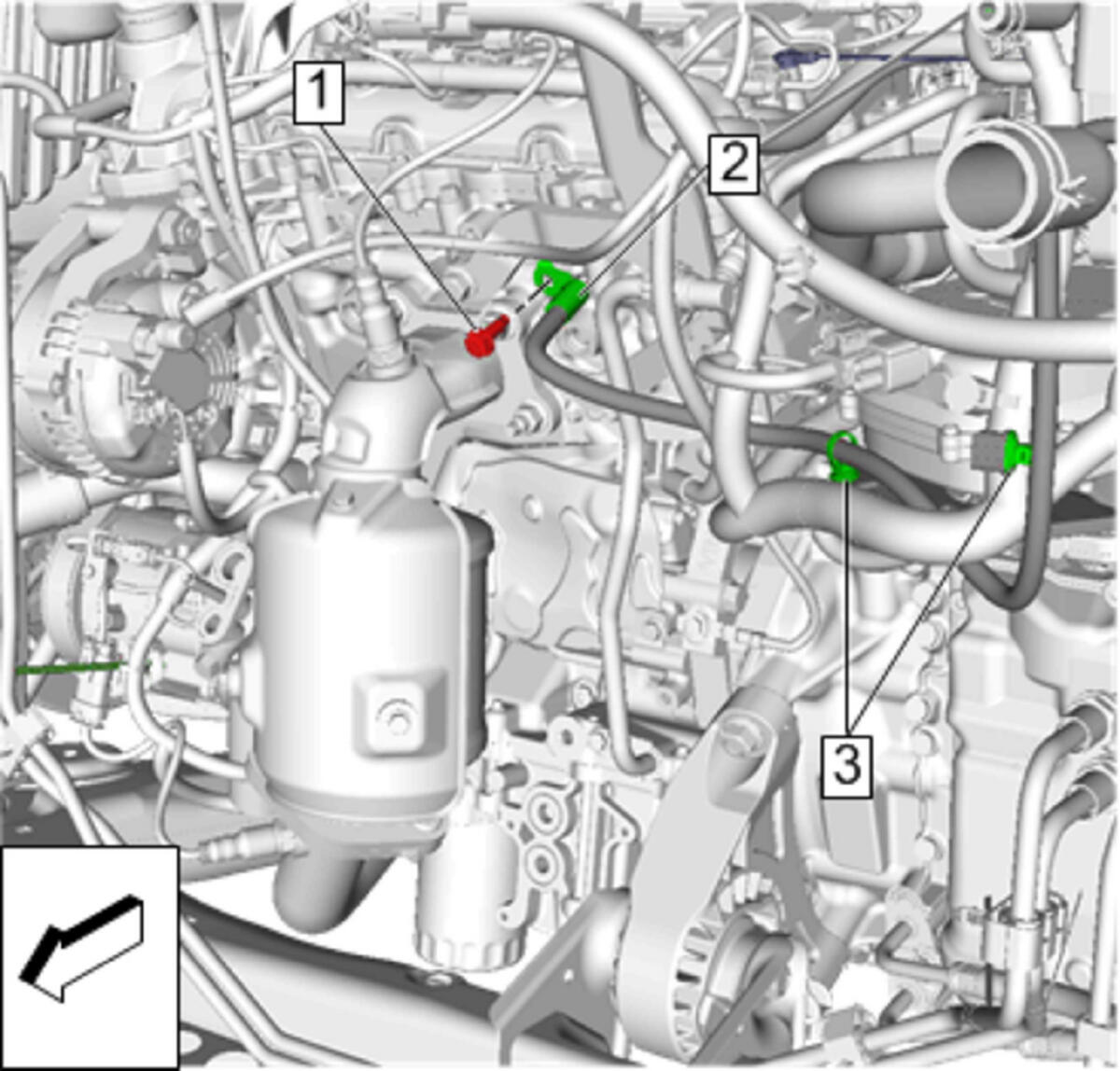

    6. Fig 3: Battery Negative Cable, Ground Fastener And Retainer
    GM4285809Courtesy of GENERAL MOTORS COMPANY
  6. Engage Retainer (3)
  7. Install Battery Negative Cable (2)
  8. Install Battery Negative Cable Ground Fastener (1) and tighten 22 N.m (16 lb ft)
