Installation Procedure

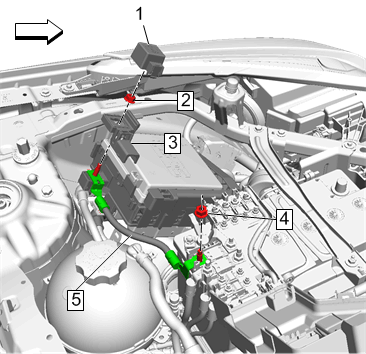

- Install Battery Positive Junction Block Cable (5)
- Install Battery Positive Junction Block Cable Fastener (4) and tighten 12 N.m (106 lb in)
- Install Lower Terminal Cover (3)
- Install Battery Positive Junction Block Cable Fastener (2) and tighten 12 N.m (106 lb in)
- Install Upper Terminal Cover (1)
- Close the battery fuse block cover.(2)
- Engage Battery Distribution Fuse Block Retaining Tab (1)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
