Installation Procedure

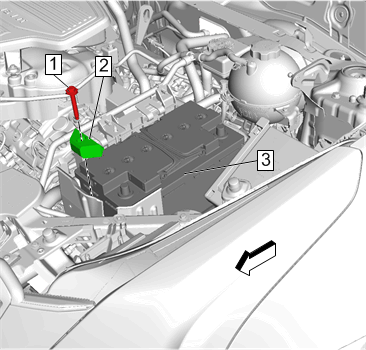

    Fig 1: Battery Hold Down Bolt And Battery
    GM4285236Courtesy of GENERAL MOTORS COMPANY
  1. Install (3)
  2. Install Battery Hold Down Retainer (2)
    3. CAUTION:

    Refer to Fastener Caution

  3. Install Battery Hold Down Bolt (1) and tighten 22 N.m (16 lb ft)

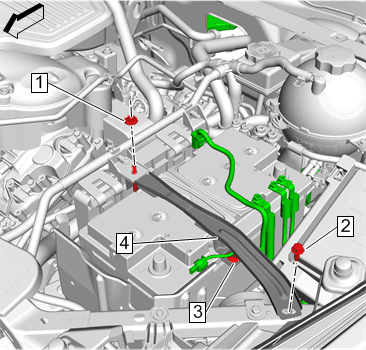

    4. Fig 2: Battery Hold Down Retainer Nut
    GM4285235Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Hold Down Retainer (4)
  5. Install the engine control module bracket along with the engine control module to the battery tray. Engine Control Module Bracket Replacement
  6. Install Battery Hold Down Retainer Nut (1) and tighten 9 N.m (80 lb in)
  7. Install Battery Hold Down Retainer Bolt (2) and tighten 9 N.m (80 lb in)
  8. Engage Retainer (3)

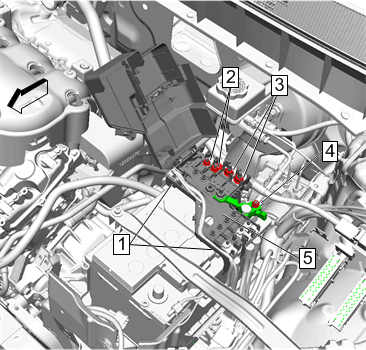

    9. Fig 3: Battery Positive Post Clamp Nut And Battery Distribution Fuse Block Retaining Tab
    GM4399949Courtesy of GENERAL MOTORS COMPANY
  9. Engage Battery Distribution Fuse Block Retaining Tab (1)
  10. Battery Positive Post Clamp Nut (4) Tighten 4.5 N.m (40 lb in)

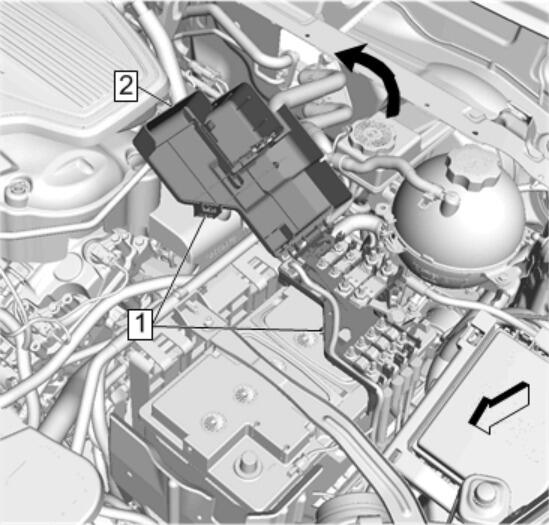

    11. Fig 4: Battery Distribution Fuse Block Retaining Tab
    GM4285233Courtesy of GENERAL MOTORS COMPANY
  11. Close the battery fuse block cover.(2)
  12. Engage Battery Distribution Fuse Block Retaining Tab (1)
  13. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
