Installation Procedure

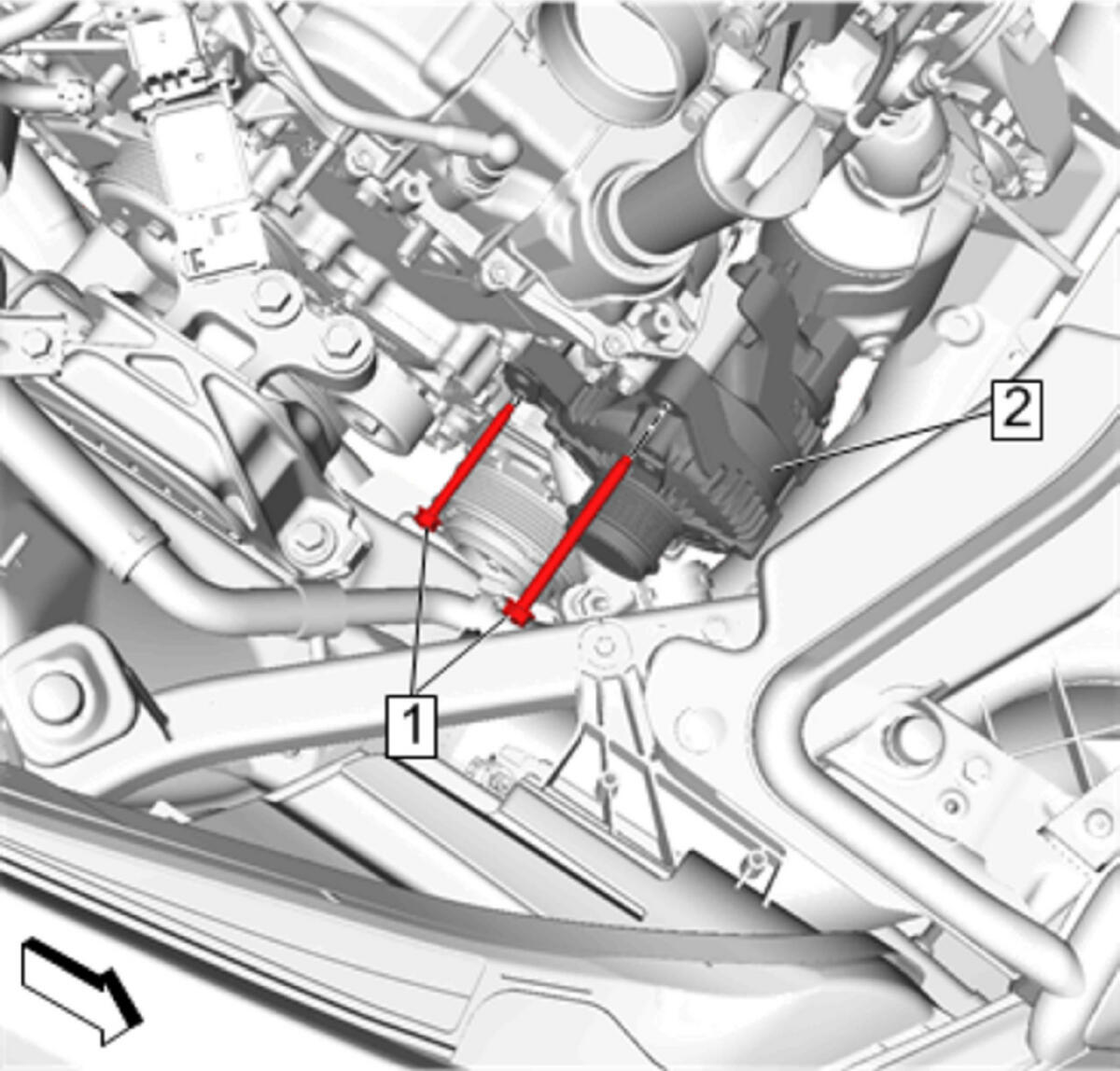

    Fig 1: Generator Bolt
    GM4310677Courtesy of GENERAL MOTORS COMPANY
  1. Generator (2) » Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bolt (1) Install and tighten [2x] 22 N.m (16 lb ft)

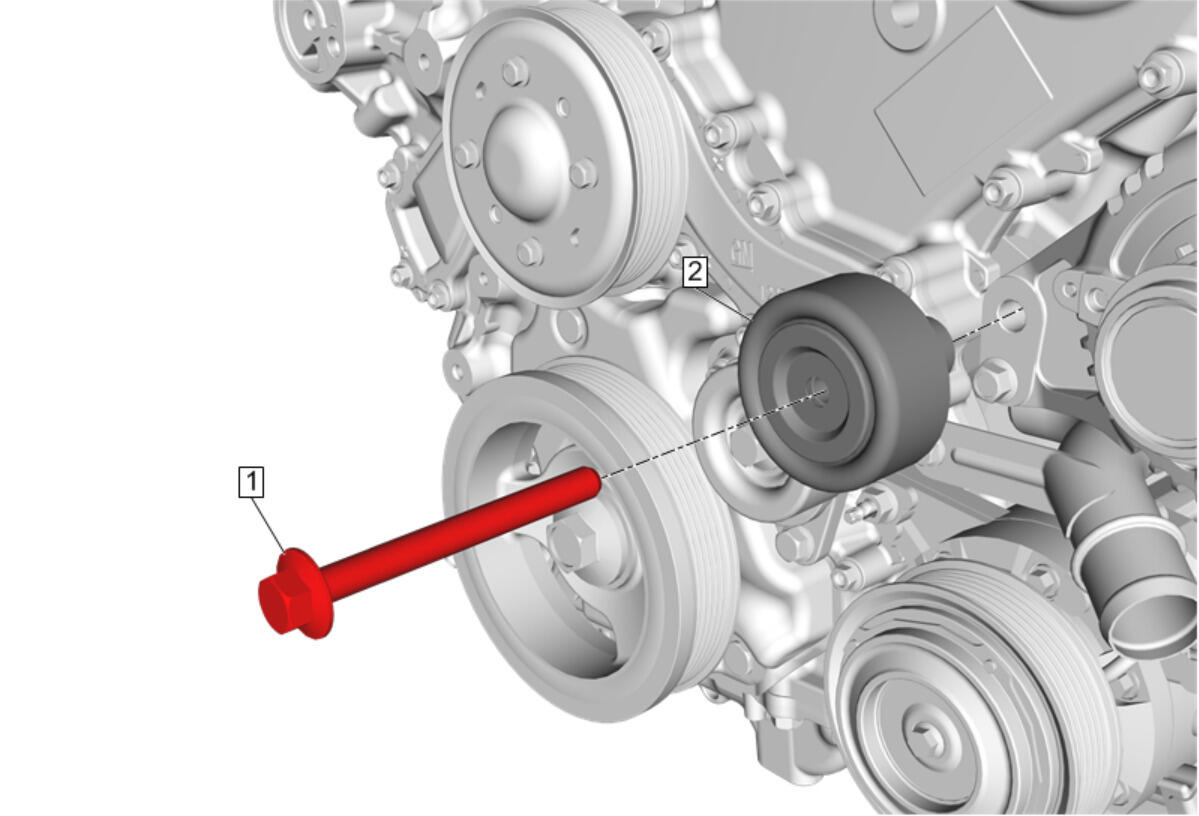

    3. Fig 2: Drive Belt Idler Pulley
    GM4295383Courtesy of GENERAL MOTORS COMPANY
  3. Drive Belt Idler Pulley (2) » Install - Drive Belt Idler Pulley Replacement

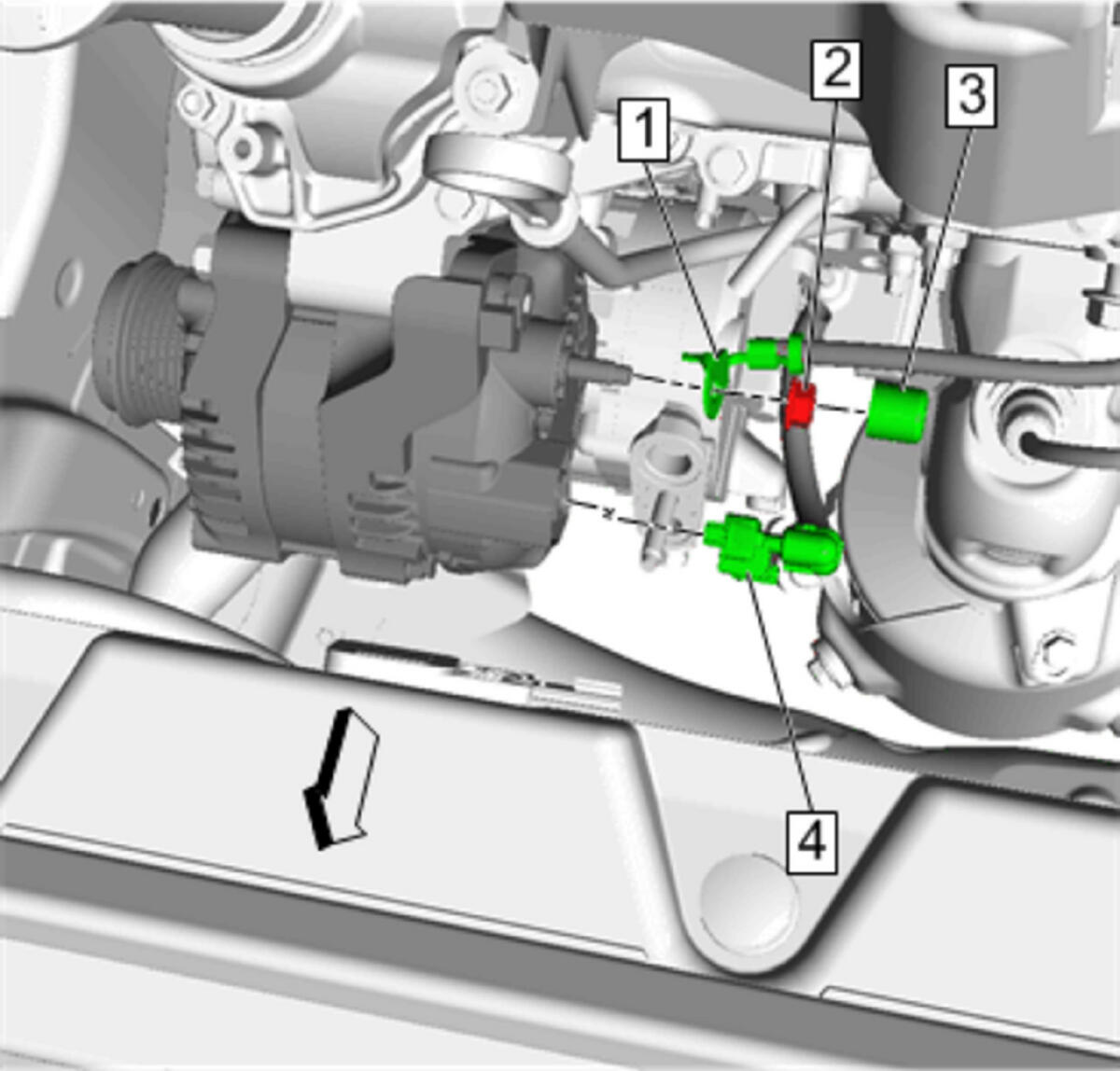

    4. Fig 3: Protective Cap
    GM4288970Courtesy of GENERAL MOTORS COMPANY
  4. Electrical Connector (4) » Connect
  5. Battery Positive Cable (1) » Install
  6. Battery Positive Cable Nut (2) @ Generator » Install and tighten 15 N.m (11 lb ft)
  7. Protective Cap (3) » Install

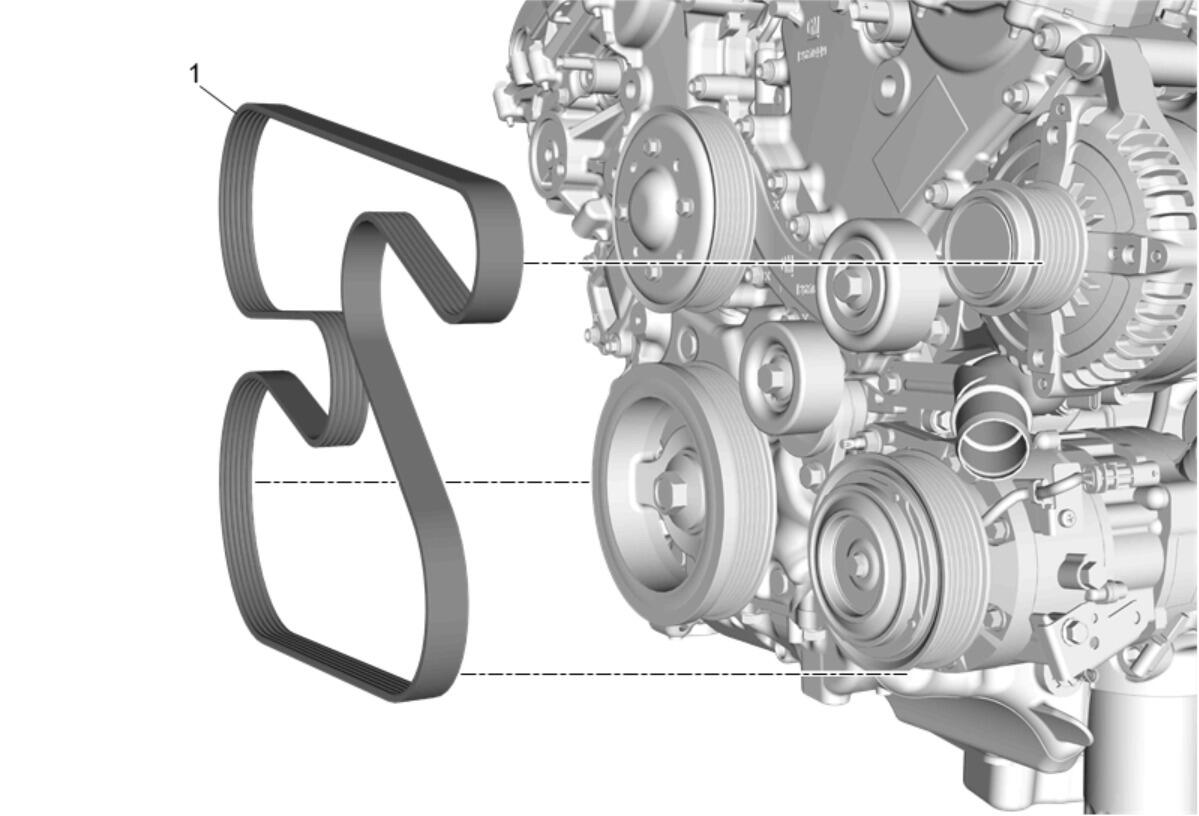

    8. Fig 4: Drive Belt And Generator Pulley
    GM4283461Courtesy of GENERAL MOTORS COMPANY
  8. Install the drive belt. (1) » Install - Drive Belt Replacement

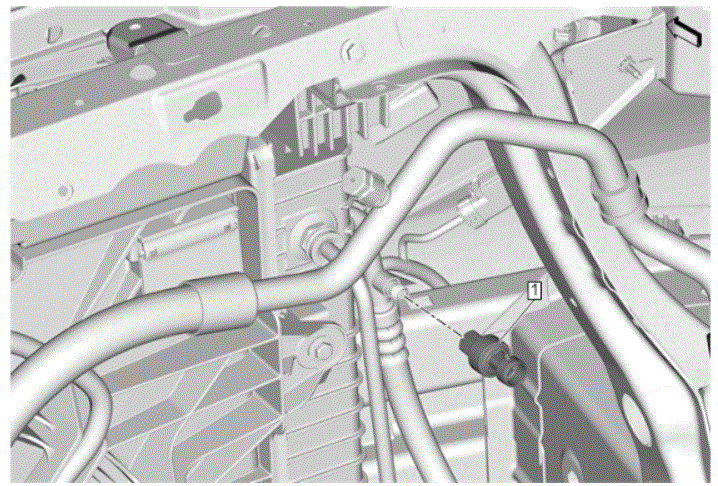

    9. Fig 5: Air Conditioning Refrigerant Pressure Sensor
    G00593712Courtesy of GENERAL MOTORS COMPANY
  9. Air Conditioning Refrigerant Pressure Sensor (1) » Install - Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

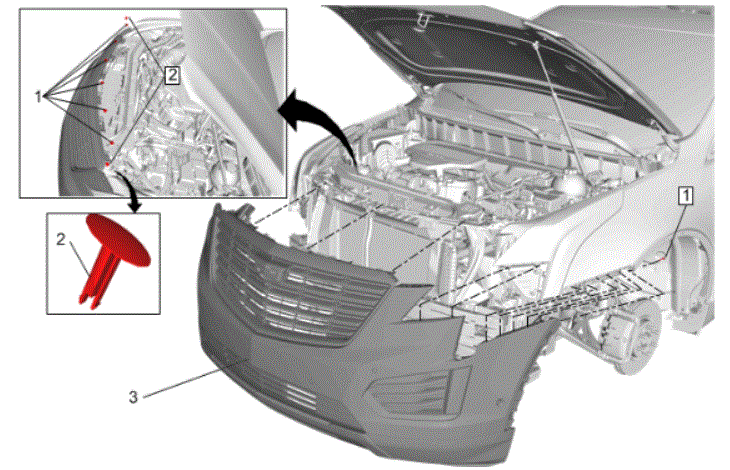

    10. Fig 6: Front Bumper Fascia
    G00593713Courtesy of GENERAL MOTORS COMPANY
  10. Front Bumper Fascia (3) » Install - Front Bumper Fascia Replacement
  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
