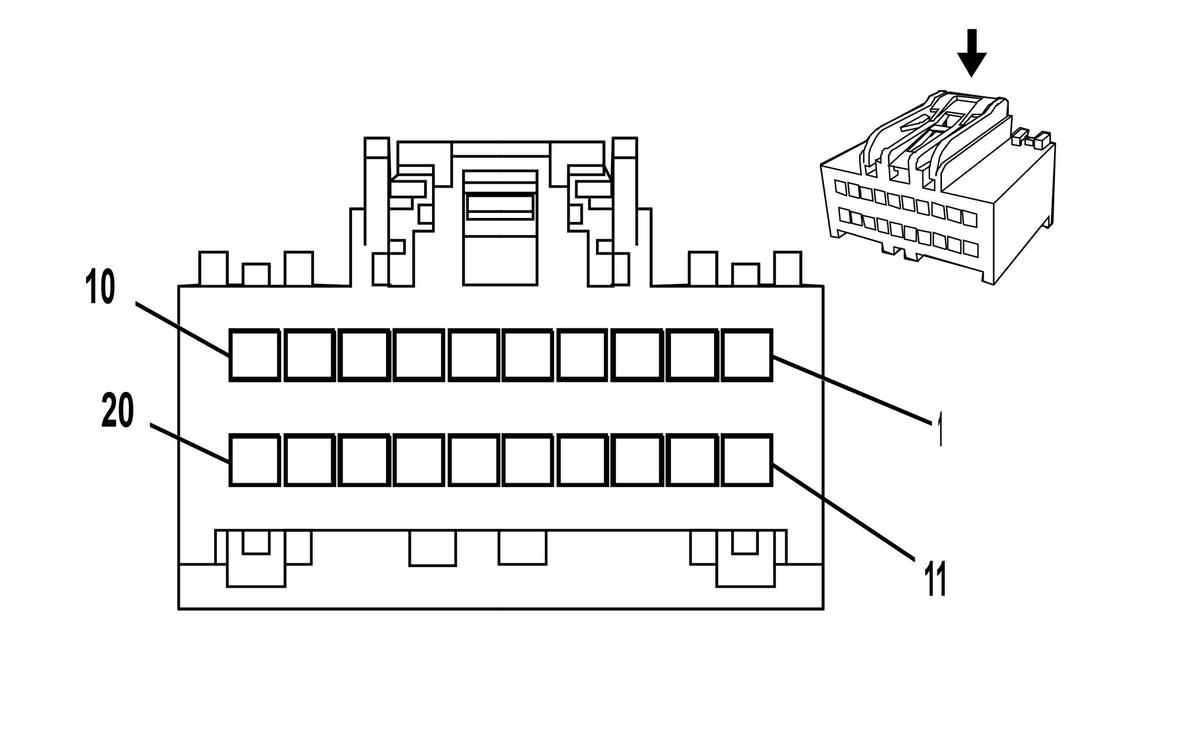

K33 HVAC Control Module X1
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 19153728
- Service Connector: 13576644
- Description: 20-Way F 0.64 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575845 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GY/GN |
7565 |
Windscreen Temp Sensor Signal |
I |
- |
| 3 |
0.35 |
PU/WH |
5203 |
Air Quality Sensor Signal |
I |
- |
| 4 |
0.35 |
BU/WH |
734 |
Inside Air Temperature Sensor Signal |
I |
- |
| 5 |
0.35 |
YE/BU |
3197 |
Humidity Temperature Sensor Signal |
I |
- |
| 6 |
0.35 |
YE/RD |
597 |
5V Reference |
I |
- |
| 7 |
0.35 |
BK/BU |
7566 |
Humidity/Windscreen Temp Sensor Low Reference |
I |
- |
| 8 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
GY/BU |
7564 |
Humidity Sensor Signal |
I |
- |
| 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.35 |
YE/PU |
1783 |
Twilight Sentinel Delay Signal |
I |
- |
| 15 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
BN |
404 |
Upper Air Temperature Sensor Signal |
I |
- |
| 19 |
0.35 |
BN/BK |
405 |
Lower Air Temperature Sensor Signal |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
