Accelerator Pedal with Position Sensor Assembly Replacement

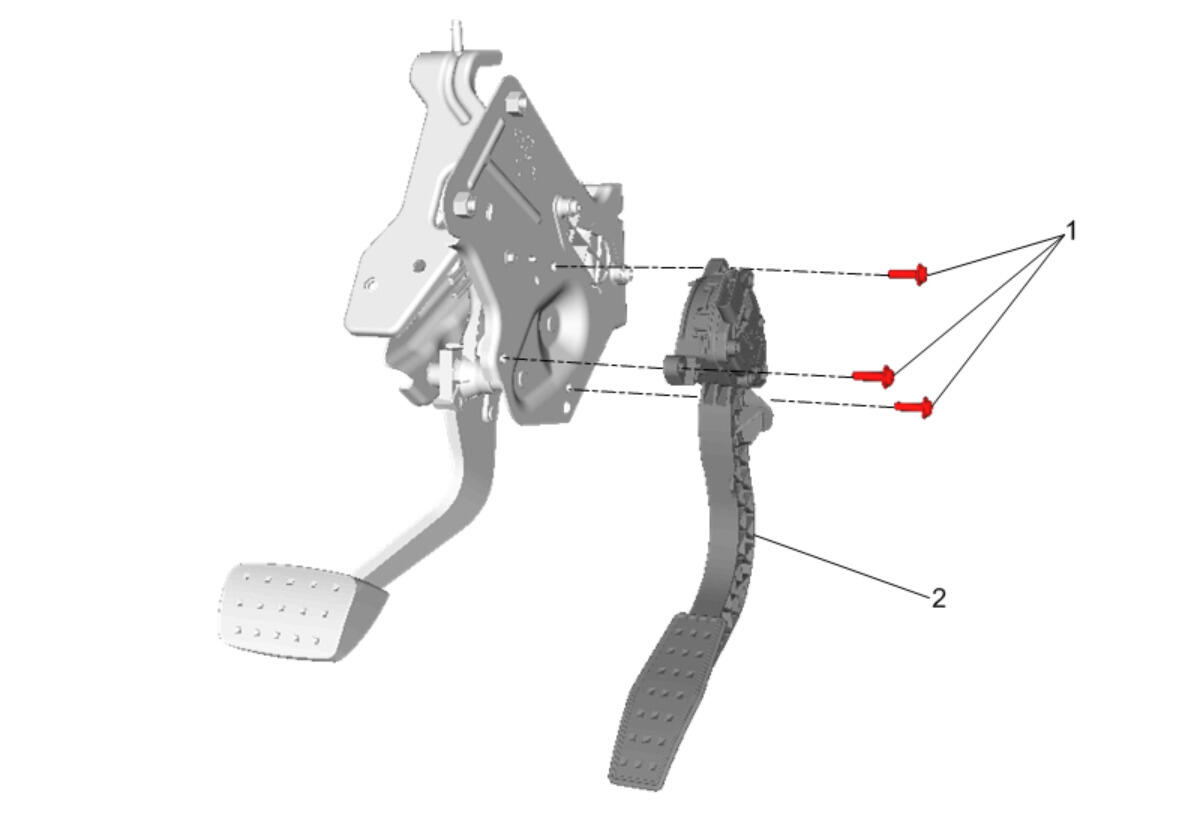

Fig 1: Accelerator Pedal with Position Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Floor Console Extension Panel - Left Side. Refer to Front Floor Console Extension Panel Replacement - Left Side
1	Accelerator Pedal Position Sensor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Accelerator Pedal Position Sensor Procedure  Disconnect the electrical connector.
