Air Cleaner Assembly Replacement

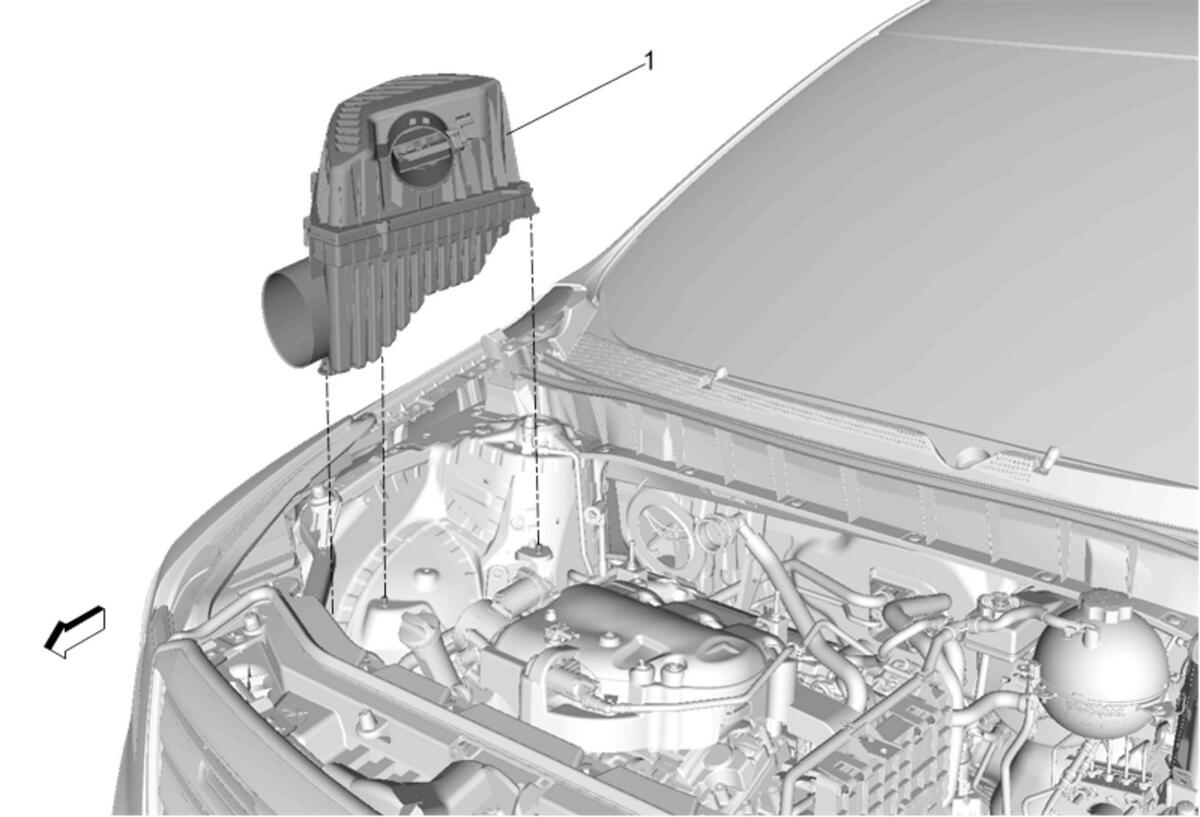

Fig 1: Air Cleaner Assembly
GM4316283Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
