Installation Procedure

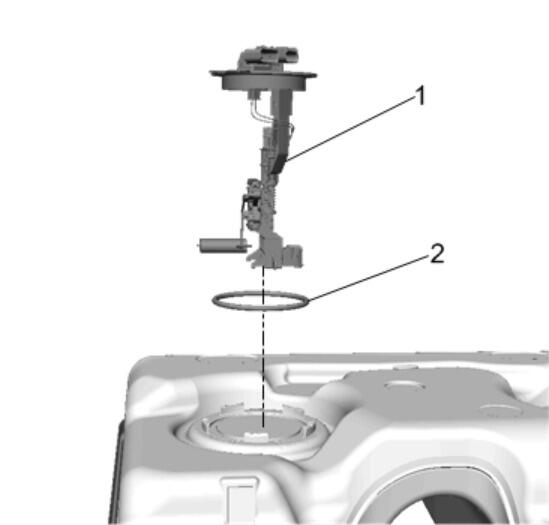

    Fig 1: Fuel Sender And Fuel Pump Seal
    GM4406118Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Fuel Pump Seal (2).
  2. Install Fuel Sender (1)

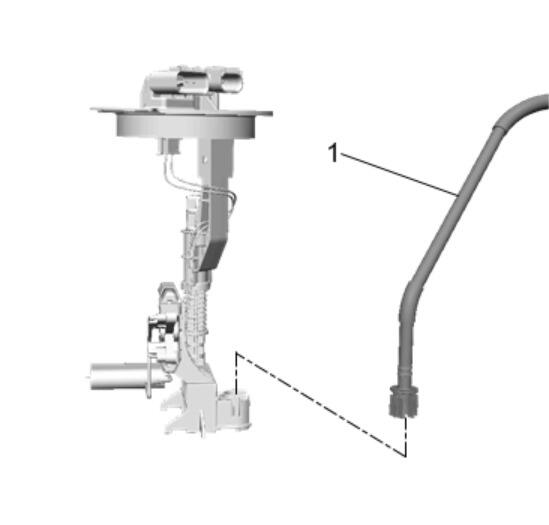

    3. Fig 2: Transfer Hose
    GM4406120Courtesy of GENERAL MOTORS COMPANY
  3. Connect Transfer Hose (1). Refer to Plastic Collar Quick Connect Fitting Service

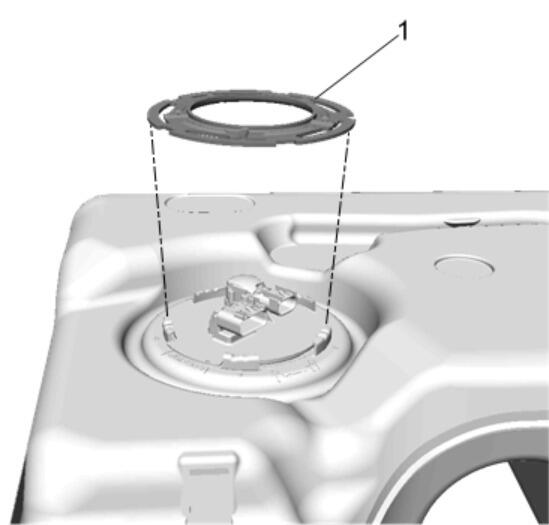

    4. Fig 3: Fuel Module Lock Ring
    GM4406112Courtesy of GENERAL MOTORS COMPANY
  4. Use the CH 48482  wrench by turning clockwise and install the lock ring (1).

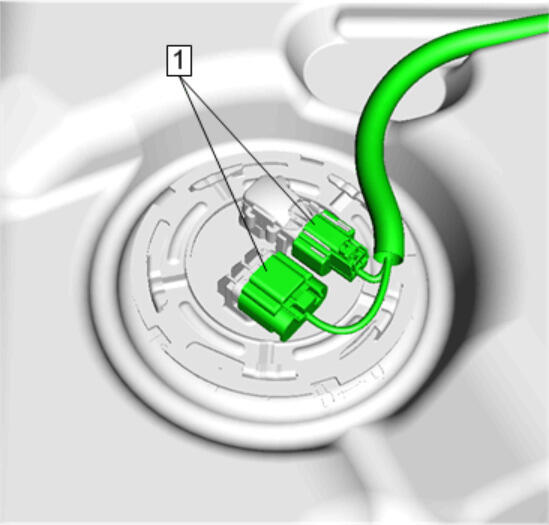

    5. Fig 4: Electrical Connectors
    GM4406102Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connectors (1) (Qty: 2)
  6. Install Fuel Tank. Refer to Fuel Tank Replacement (AWD)
