Installation Procedure

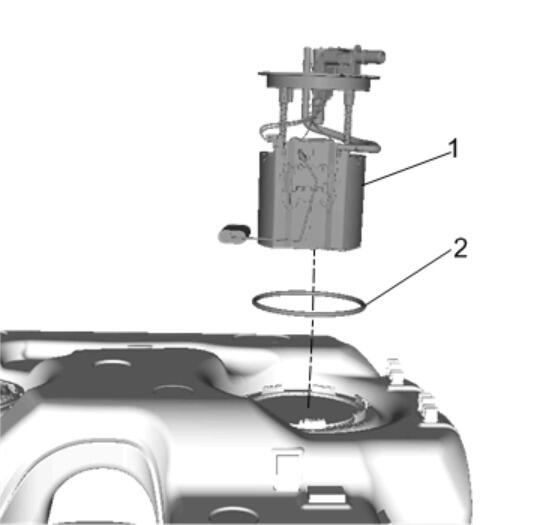

    Fig 1: Fuel Tank Fuel Pump Module And O-Ring
    GM4295433Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW O-Ring (2)
  2. Install Fuel Tank Fuel Pump Module (1)

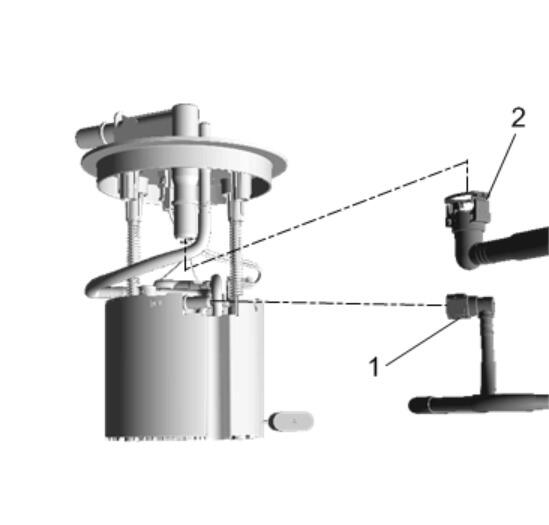

    3. Fig 2: Transfer Pipe And Fuel Pump Vent Pipe
    GM4295431Courtesy of GENERAL MOTORS COMPANY
  3. Connect Fuel Pump Vent Pipe (2). Refer to Plastic Collar Quick Connect Fitting Service
  4. Connect Transfer Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service

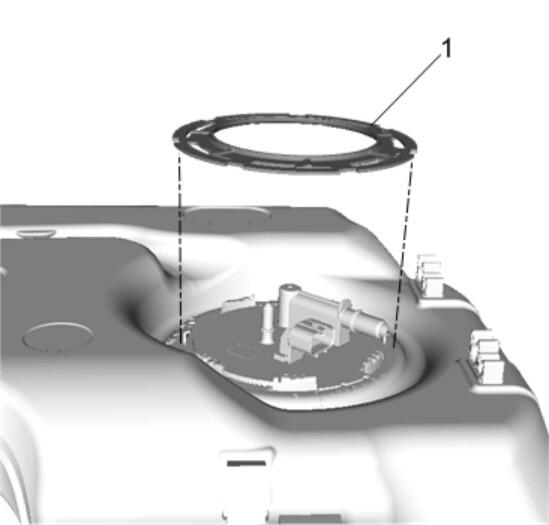

    5. Fig 3: Fuel Pump Lock Ring
    GM4295125Courtesy of GENERAL MOTORS COMPANY
  5. Install Fuel Pump Lock Ring (1) using CH 45722  Fuel Sender Lock Ring Wrench

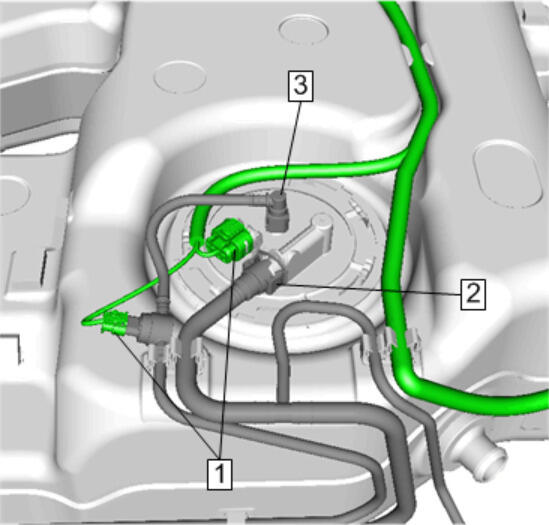

    6. Fig 4: Electrical Connectors, Canister Vent Hose And Fuel Pump Feed Hose
    GM4295098Courtesy of GENERAL MOTORS COMPANY
  6. Connect Fuel Pump Fuel Feed Hose (3). Refer to Plastic Collar Quick Connect Fitting Service
  7. Connect Evaporative Emission Canister Vent Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  8. Connect Electrical Connectors (1) (Qty: 2)
  9. Install Fuel Tank. Refer to Fuel Tank Replacement (AWD)
