Installation Procedure

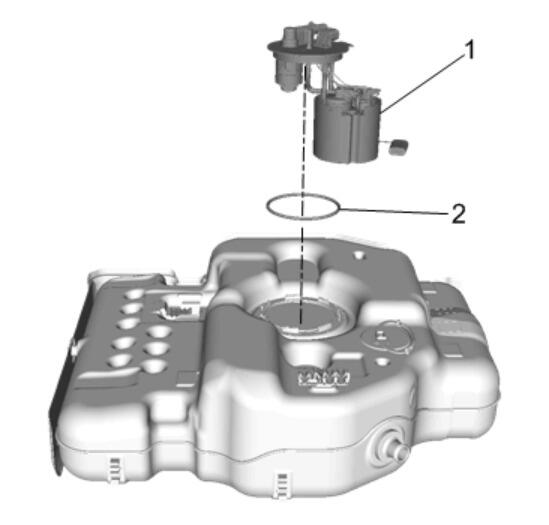

    Fig 1: Fuel Tank Fuel Pump Module And O-Ring
    GM4292621Courtesy of GENERAL MOTORS COMPANY
  1. Install New O-Ring (2)
  2. Install Fuel Tank Fuel Pump Module (1)

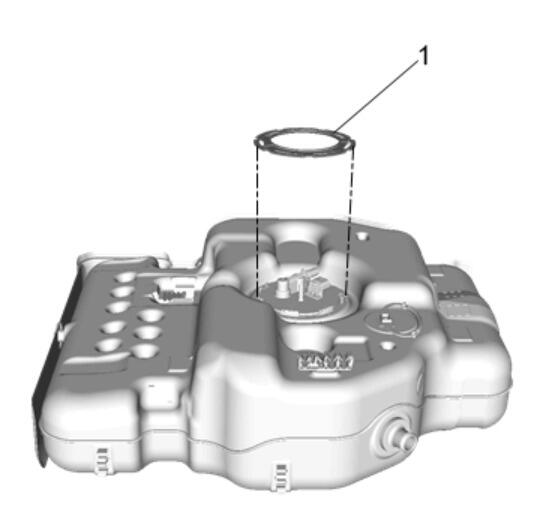

    3. Fig 2: Fuel Pump Lock Ring
    GM4292619Courtesy of GENERAL MOTORS COMPANY
  3. Install Fuel Pump Lock Ring (1) using CH 45722  Fuel Sender Lock Ring Wrench

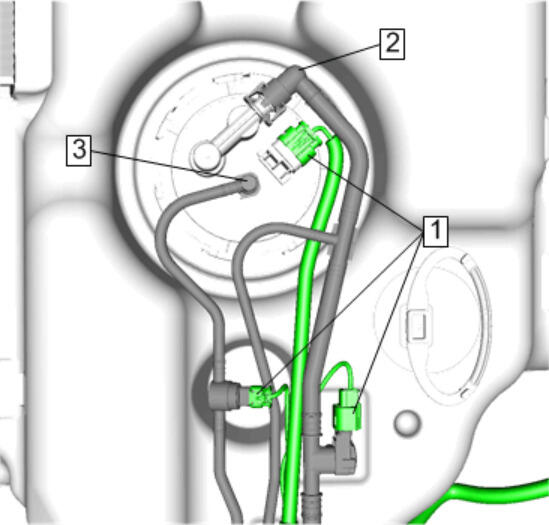

    4. Fig 3: Electrical Connectors, Canister Vent Hose And Fuel Pump Feed Hose
    GM4292617Courtesy of GENERAL MOTORS COMPANY
  4. Connect Fuel Pump Fuel Feed Hose (3). Refer to Plastic Collar Quick Connect Fitting Service
  5. Connect Evaporative Emission Canister Vent Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  6. Connect Electrical Connectors (1) (Qty: 3)
  7. Install Fuel Tank. Refer to Fuel Tank Replacement (FWD)
