Intake Air Splash Shield Replacement

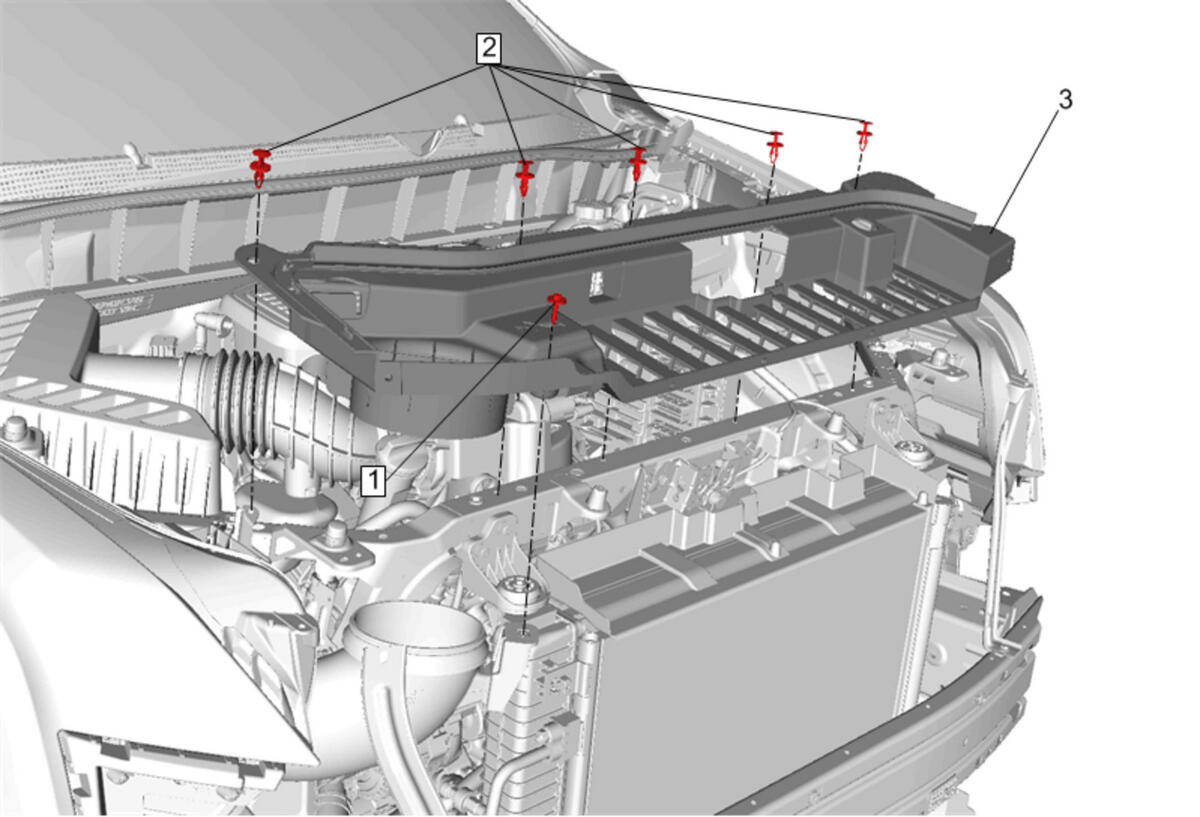

Fig 1: Intake Air Splash Shield
GM4316098Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Front Bumper Fascia Center Support. Refer to Front Bumper Fascia Center Support Replacement
  2. Remove Radiator Air Upper Baffle and Deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (LGX)
1 Intake Air Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Intake Air Splash Shield Retainer (Qty: 5)
3 Intake Air Splash Shield
